From ingredient to a defined product
Watermelon juice begins with clean edible flesh, not a whole-fruit crushing shortcut. Rind separation, seed character and the intended pulp level should be defined before the line is described as a juice or concentrate project. Clean the whole fruit before opening and separate the edible flesh from the rind to the agreed product specification. Remove unwanted seeds and extract or finish the flesh into juice. Set the pulp and colour target before concentration or blending; trial the entire intended preservation and storage route.

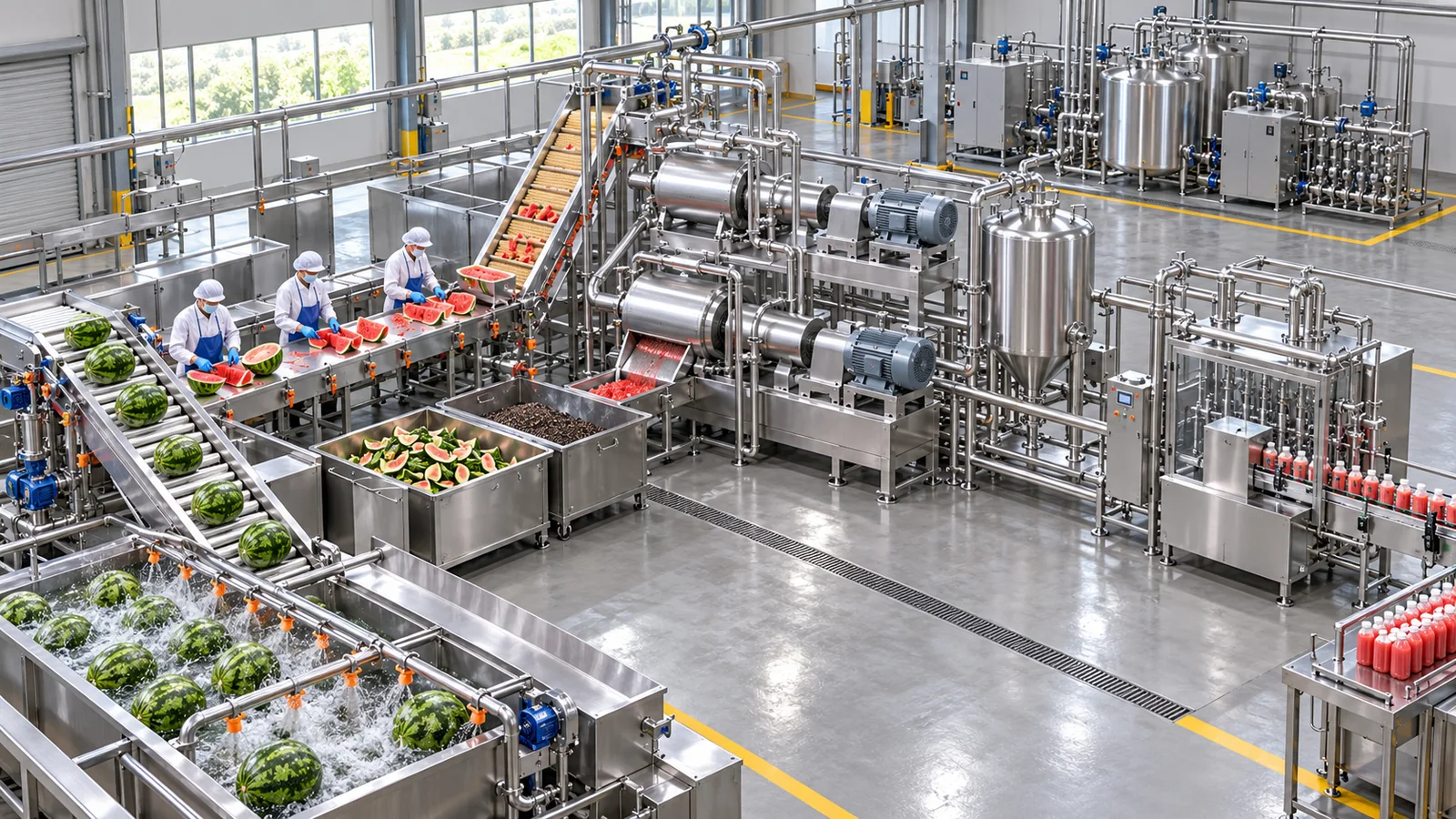

Illustrated product route: Watermelon juice
Product directions to specify
- juice
- juice concentrate
- beverage blend base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Will seeded and seedless watermelons both be accepted, and how will rind carryover and occasional hard seeds be controlled?
- What incoming ripeness and flesh colour are required, and does the buyer prefer a pulpy juice or a clearer base after observing sediment and flavour during storage trials?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Inspect the accepted supply
Identify variety, maturity and damaged fruit.
Record the actual size and seed characteristics used in the trial rather than relying on the word seedless alone.
Equipment duty: Receiving and size-inspection conveyor
- 02
Clean before cutting
Clean the outer rind before exposing flesh.
The exterior cleaning and subsequent clean-flesh handling are separate parts of the preparation plan.
Equipment duty: Melon washer and controlled rinse
- 03
Remove rind and unwanted seed material
Recover inspected edible flesh.
Keep rind and dirty preparation contact away from the juice feed.
Equipment duty: Guarded cutting and flesh-preparation station
- 04
Reduce and extract
Develop the selected liquid and pulp fraction.
Assess seed fragments and flesh recovery at the actual preparation condition.
Equipment duty: Flesh cutter, pulper or defined juice press
- 05
Set pulp and coarse-particle level
Meet the intended juice texture.
Colour and apparent liquidity do not replace a defined pulp or hard-particle acceptance criterion.
Equipment duty: Finishing screen and sampling points
- 06
Choose single-strength or concentration route
Supply the chosen downstream product route.
A concentrate project needs its own product and sensory evaluation; laboratory research is not a universal factory treatment specification.
Equipment duty: Covered juice tank and optional evaporator interface
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The flesh juice or concentrate base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Receiving and size-inspection conveyor
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Guarded cutting and flesh-preparation station
Rind separation and clean-flesh handling.
The arrangement should separate external rind handling from exposed flesh and juice. Incoming maturity and the intended preservation system need specific evaluation; fruit name is not a safety classification.
Flesh cutter, pulper or defined juice press
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Assess flavour, colour, seed fragments and pulp settling on maturity-defined lots. No specific nutrient retention is inferred from the fruit or line illustration.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Collect rind, seed-rich and fibre-rich rejects separately. Any co-product or further extraction needs its own quality and product-identity assessment.
Cleaning and the packed-product boundary
Rind-handling tools and clean-flesh contact surfaces need distinct cleaning boundaries. Inspect extraction screens and collection points for seed and pulp residues.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the flesh juice or concentrate base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Use accepted seeded or seed-reduced varieties and size extremes, reviewing rind separation and the final product on the same material balance.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Watermelon processing questions
Can whole watermelon be crushed for the same product?
The described route starts with clean edible flesh and a defined seed objective. Whole-fruit crushing changes the incoming material and requires a different product and process assessment.
Does published concentrate research establish a commercial setting?
No. A research matrix and its study conditions do not validate another plant’s preservation or quality. The actual ingredient, equipment and intended package require their own trials.
What should a useful watermelon trial establish?
Use accepted seeded or seed-reduced varieties and size extremes, reviewing rind separation and the final product on the same material balance. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
