From ingredient to a defined product
Walnut beverage production should define the kernel supply, skin character and desired emulsion. A beverage project and an oil-extraction project may share some material-preparation questions, but their products and process boundaries remain separate. Prepare edible walnut kernels and reduce them into the chosen aqueous beverage base. Formulation and homogenisation influence the oil-bearing dispersion, while any deliberate oil separation is an additional process choice. Test physical and flavour stability using the intended storage conditions rather than assuming a recipe from another nut transfers unchanged.

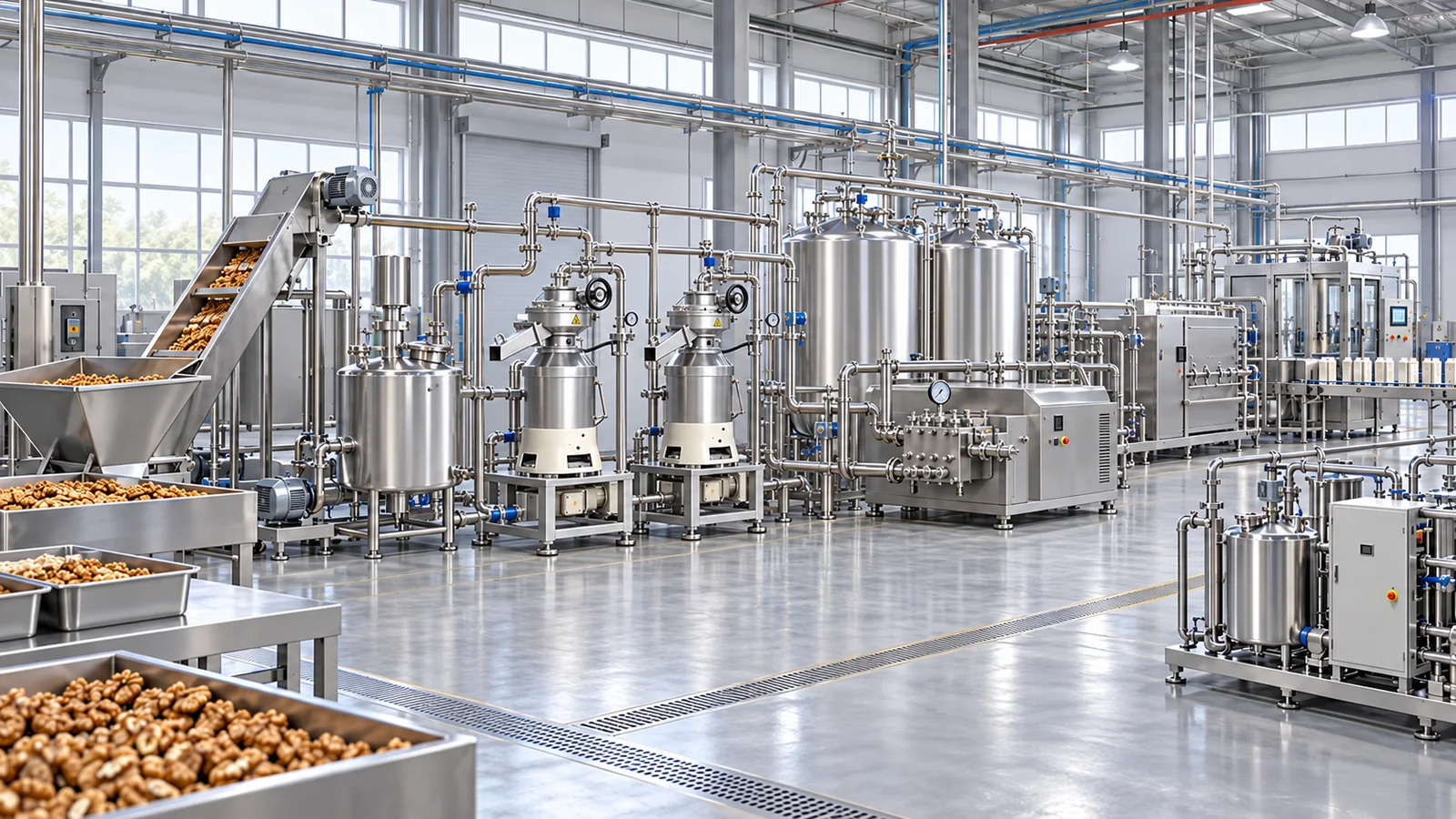

Illustrated product route: Walnut beverage base
Product directions to specify
- walnut beverage
- emulsified nut base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Should the product retain the full kernel-derived oil fraction or use a separately specified lower-fat ingredient?
- What balance of walnut flavour, colour and smoothness does the buyer require, and how will oil separation, sediment and oxidative flavour changes be assessed during formulation trials?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive edible kernels
Check the accepted supply and remove shell contamination.
Record kernel condition and the required skin character before developing the beverage route.
Equipment duty: Kernel inspection and receiving station
- 02
Prepare the kernel feed
Supply a consistent kernel state to size reduction.
Any skin-removal or conditioning operation needs its own trial and inclusion in the scope.
Equipment duty: Inspection and defined preparation arrangement
- 03
Measure water and solids
Establish the declared beverage solids basis.
Keep water and any formulation ingredients separate from the kernel recovery calculation.
Equipment duty: Controlled feed vessel and dosing
- 04
Wet grind
Develop the kernel dispersion for the intended beverage.
Assess coarse particles and the desired sensory character with the actual kernel supply.
Equipment duty: Selected wet mill
- 05
Review optional separation
Meet the product’s coarse-solids objective.
Partial oil removal is a distinct development choice, not an automatic stage in every walnut drink.
Equipment duty: Screen or specified separation unit
- 06
Develop and transfer the base
Supply the specified formulation to treatment and filling.
Laboratory stability results do not establish universal homogenisation or shelf-life settings.
Equipment duty: Ingredient mixer, selected emulsion interface and covered tank
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The kernel-based beverage route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Kernel inspection and receiving station
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Controlled feed vessel and dosing
Kernel preparation and beverage development.
Whole-kernel wet processing and reconstitution from a purchased paste are different incoming-material routes. Solids, formulation and desired suspended particles determine the separation and homogenisation brief.
Selected wet mill
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Evaluate shell fragments, skin specks, flavour, sediment and phase behaviour. Follow the actual recipe through its intended treatment and storage assessment.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Keep shell fragments, coarse solids and any separately developed oil-rich fraction identified. A saleable oil product needs a separate quality and handling specification.
Cleaning and the packed-product boundary
Oil-bearing and kernel residues need inspection of mill contacts, screens, mixers and seals. Product segregation and cleaning effectiveness require explicit verification.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the kernel-based beverage is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Use the actual kernel and skin specification, then compare the intended formulation with any optional separation route kept separately identified.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Walnut processing questions
Is oil separation required for walnut beverages?
No universal requirement follows from the product name. It is an optional development route with its own material balance, quality and handling questions.
Can a published walnut recipe be copied as the plant setting?
No. A research formulation and its experimental conditions do not validate another plant’s raw material, treatment or package. Develop and test the actual product.
What should a useful walnut trial establish?
Use the actual kernel and skin specification, then compare the intended formulation with any optional separation route kept separately identified. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
