From ingredient to a defined product
Starfruit preparation should account for the ribbed fruit shape and the intended juice or blended ingredient. Cleaning, trimming and separation should be evaluated with the accepted variety and maturity rather than a generic round-fruit assumption. Inspect and wash starfruit, trim unsuitable portions and reduce the flesh for juice recovery. Separate unwanted coarse material before deciding on clarification or retained pulp. The relatively light juice character makes blend development a useful project step; a formulated drink should have its own flavour and ingredient specification.

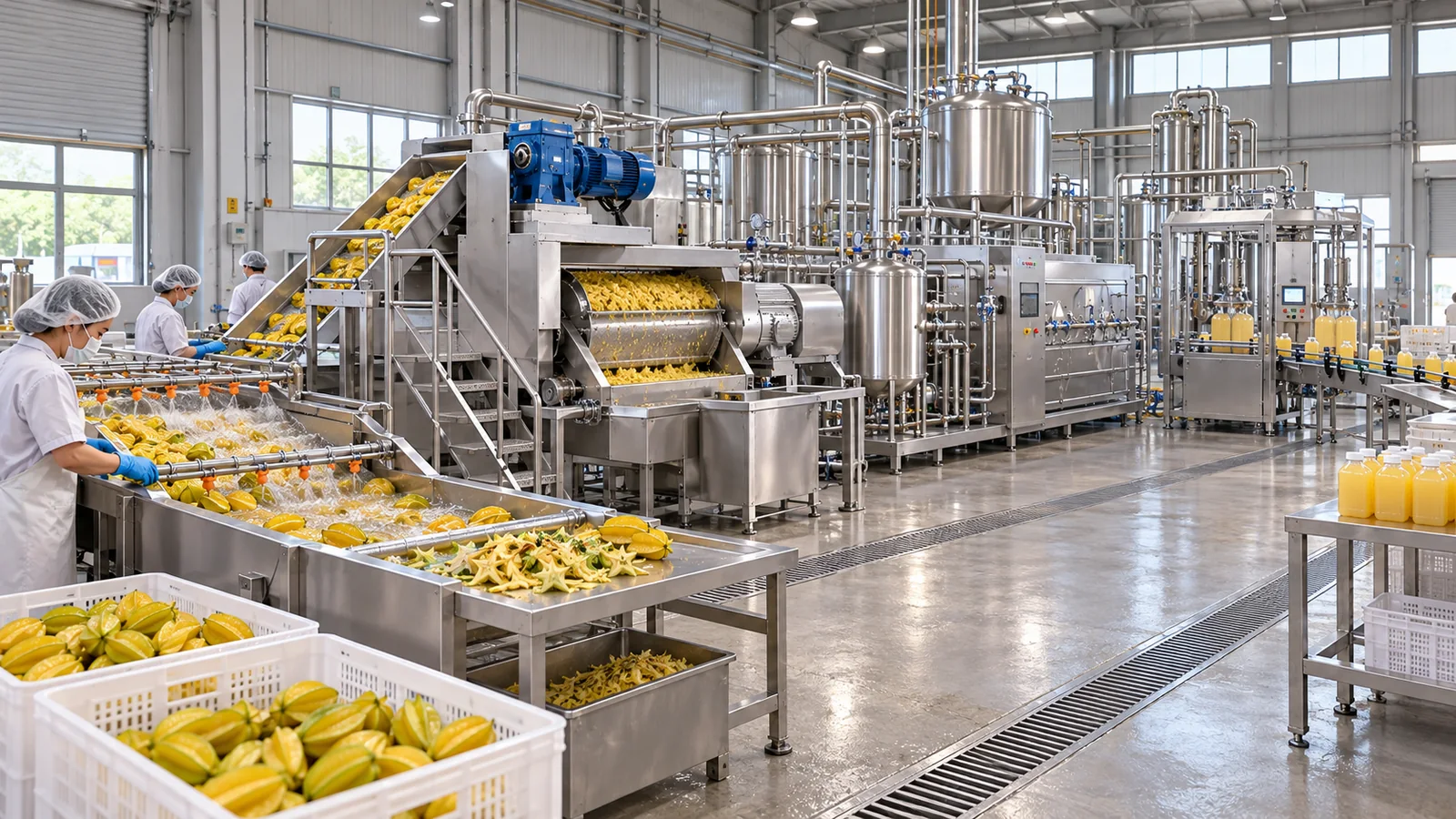

Illustrated product route: Starfruit juice
Product directions to specify
- juice
- sweetened beverage base
- blended juice ingredient
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- What cultivar and maturity mix will supply the plant, and how much variation in acidity and flavour can the target blend tolerate?
- Should the buyer retain a cloudy appearance or require a clearer ingredient, and which ridge fragments, seeds or visible sediment need to be removed during finishing?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Inspect accepted lots
Record variety, maturity and fruit condition.
The actual ribbed shape and size range should be included in handling trials.
Equipment duty: Receiving conveyor and inspection table
- 02
Clean the surface
Remove debris before cutting and extraction.
Demonstrate cleaning around the fruit ribs rather than relying on a smooth-fruit reference alone.
Equipment duty: Washer and controlled rinse
- 03
Trim and prepare
Remove unwanted parts and prepare a repeatable extraction feed.
State the accepted preparation labour and the condition supplied to the next machine.
Equipment duty: Inspection/trimming station and controlled cutter
- 04
Extract the product fraction
Recover the declared liquid or flesh-containing base.
Keep seed and coarse-skin rejection visible in the assessment.
Equipment duty: Juice press or pulper selected for the ingredient
- 05
Finish the texture
Meet the desired cloud, pulp and mouthfeel.
A smooth blend ingredient and a pulpy fruit base should have separate acceptance criteria.
Equipment duty: Finishing screen and sample points
- 06
Route the accepted ingredient
Connect the prepared base to its selected downstream process.
Any formulation, clarification or concentration is an additional development choice.
Equipment duty: Covered vessel and suitable transfer pump
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The juice or beverage blend base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Receiving conveyor and inspection table
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Inspection/trimming station and controlled cutter
Preparation and extraction.
A trial should distinguish the edible fraction entering extraction from whole-fruit weight. The agreed pulp or seed character determines how much separation follows the initial extraction.
Juice press or pulper selected for the ingredient
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Review flavour, acidity, cloud and coarse particles on identified lots. Evaluate the ingredient in its intended blend without making unsupported health or nutrient claims.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Segregate trimming rejects, seeds and coarse solids. Do not count a secondary extraction fraction as accepted product without its own quality decision.
Cleaning and the packed-product boundary
Inspect cutter, rib-cleaning contact areas and screens for retained solids. Open preparation and the closed product circuit require distinct cleaning responsibilities.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the juice or beverage blend base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Trial the accepted fruit shape and maturity range, assessing the prepared ingredient in the intended final application.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Starfruit / Carambola processing questions
Can a round-fruit washer be assumed adequate?
The actual starfruit ribs and accepted size range should be demonstrated. Equipment selection should follow cleaning and transfer results on the intended supply, not only a broad fruit category.
Does a juice route establish a finished beverage?
No. A beverage adds a formulation, preservation, package and storage specification. The prepared starfruit ingredient is only one defined input to that project.
What should a useful starfruit / carambola trial establish?
Trial the accepted fruit shape and maturity range, assessing the prepared ingredient in the intended final application. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
