From ingredient to a defined product
The illustrated route begins with prepared pomegranate arils. Whole-fruit washing, opening and separation of peel and membranes are important upstream questions, but they are outside this prepared-aril line unless separately engineered and specified. Clean the fruit and separate juice-bearing arils from peel and internal membranes. Extract from the arils with controlled pressure, then screen the juice and decide whether clarification is needed. Keeping unwanted rind material out of extraction is a separate task from removing normal suspended pulp after pressing.

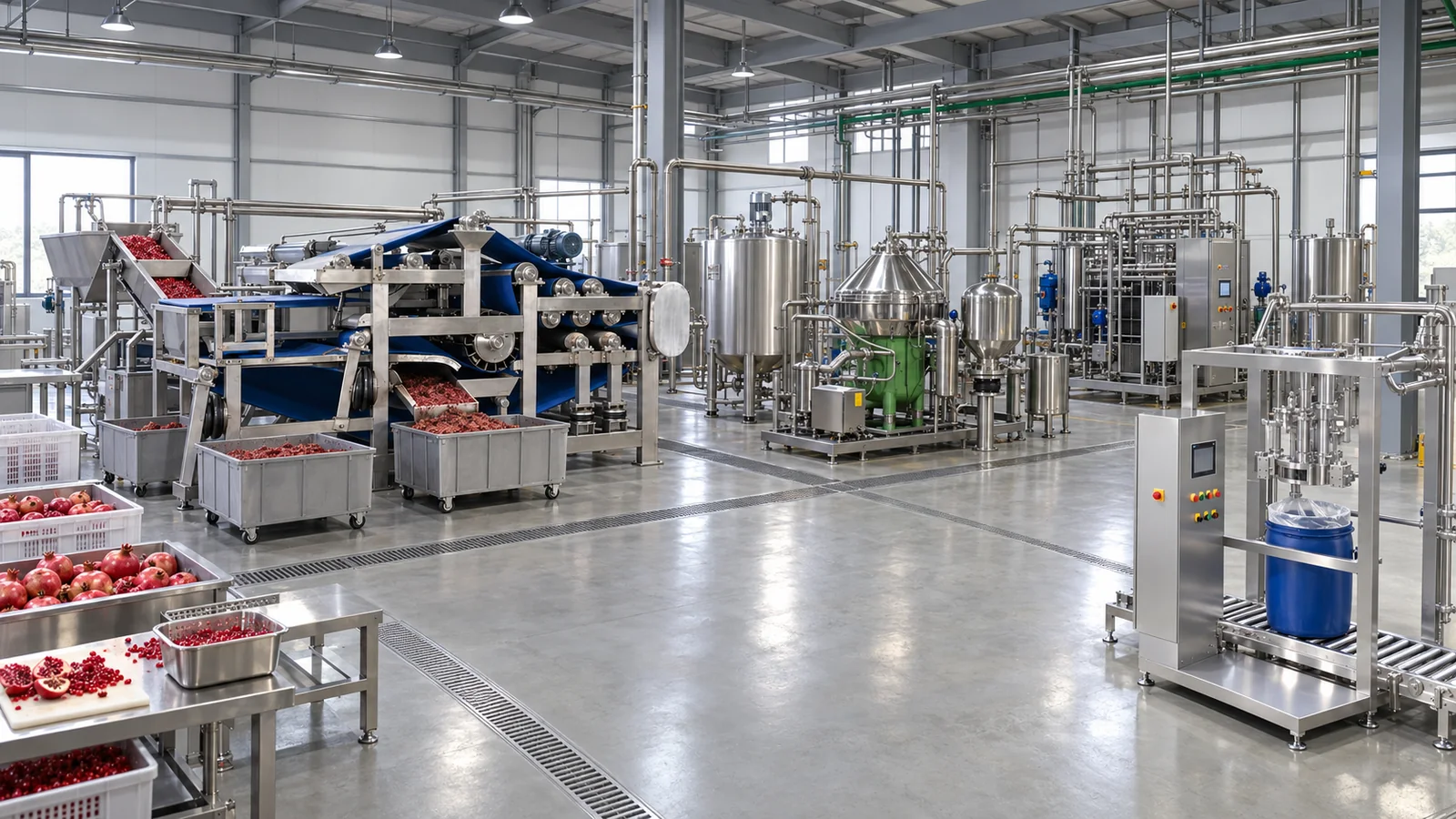

Illustrated product route: Prepared-aril pomegranate juice
Product directions to specify
- juice
- juice concentrate
- beverage blend base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- What peel and white-membrane carryover is acceptable after aril separation, and how will the resulting taste be checked?
- Should the finished juice be cloudy or clear, and what extraction trial will balance juice recovery against unwanted seed breakage and astringency for the contracted fruit varieties?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive prepared arils
Confirm the edible-aril inlet specification and supplier preparation boundary.
Whole-fruit automatic opening and aril separation are not established by a downstream juice-line illustration.
Equipment duty: Controlled aril receiving and inspection station
- 02
Inspect peel and membrane carryover
Remove unacceptable peel or membrane material before pressing.
Assess the accepted inlet rather than using stronger extraction to compensate for poorly prepared arils.
Equipment duty: Gentle inspection and controlled feed conveyor
- 03
Press with controlled intensity
Recover juice from the prepared arils.
Compare taste, hard-seed condition and the rejected fraction; aggressive seed crushing is not the same as acceptable juice recovery.
Equipment duty: Product-compatible aril juice press
- 04
Remove coarse solids
Prepare a defined juice intermediate.
Check residual hard particles and the desired suspended-pulp level on representative aril lots.
Equipment duty: Screening and juice-finishing stage
- 05
Select cloudy or clearer juice
Develop the appearance required by the product brief.
Clarification is optional scope with its own trial; the basic prepared-aril route should not imply a membrane system by default.
Equipment duty: Covered sample vessel and selected separation equipment
- 06
Route the accepted juice
Supply the declared single-strength or concentrate project.
Concentration and any further clarification must be specified separately from prepared-aril pressing.
Equipment duty: Closed buffer and treatment/concentration interface
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The prepared-aril juice route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Controlled aril receiving and inspection station
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Product-compatible aril juice press
Material-specific preparation.
The preparation section must address the actual peel, pit, shell or seed structure. Fruit names alone do not define a suitable inlet condition for the next machine.
Screening and juice-finishing stage
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Review peel notes, astringency, seed fragments, colour and cloud on a declared aril inlet. Compare press settings against both product quality and the rejected fraction.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Collect seed-rich press cake and any membrane-rich rejects separately. A whole-fruit supply would also require upstream peel and membrane handling outside the illustrated boundary.
Cleaning and the packed-product boundary
Aril remnants, small seeds and pigments require accessible press and screen surfaces. Upstream peel handling, if added, has a separate cleaning boundary from the closed juice system.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the prepared-aril juice is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Use prepared arils meeting the declared membrane and peel specification, then compare press intensity and finished-juice quality on the same basis.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Pomegranate processing questions
Does the hero show automatic whole-fruit aril separation?
No. It depicts a prepared-aril juice route. Whole-fruit washing, opening and peel/membrane separation need a separate scope and demonstration before being represented as included equipment.
Is harder pressing always better?
No. Assess juice quality, seed condition and recovery together. A larger gross liquid amount is not an acceptable result if the product misses the agreed taste or hard-particle specification.
What should a useful pomegranate trial establish?
Use prepared arils meeting the declared membrane and peel specification, then compare press intensity and finished-juice quality on the same basis. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
