From ingredient to a defined product
Pineapple juice preparation should keep peel contact, fruit size and fibre removal visible in the process brief. A dedicated juice route is different from a solid-pack project that also collects juice from prepared flesh or trimmings. Remove unwanted crown material, wash and size pineapples for the selected extraction method. Separate the peel from the juice-bearing flesh, then reduce coarse fibres and unwanted specks to the target pulp level. A juice-only project and one receiving trim from a slice operation have different incoming-stream requirements.

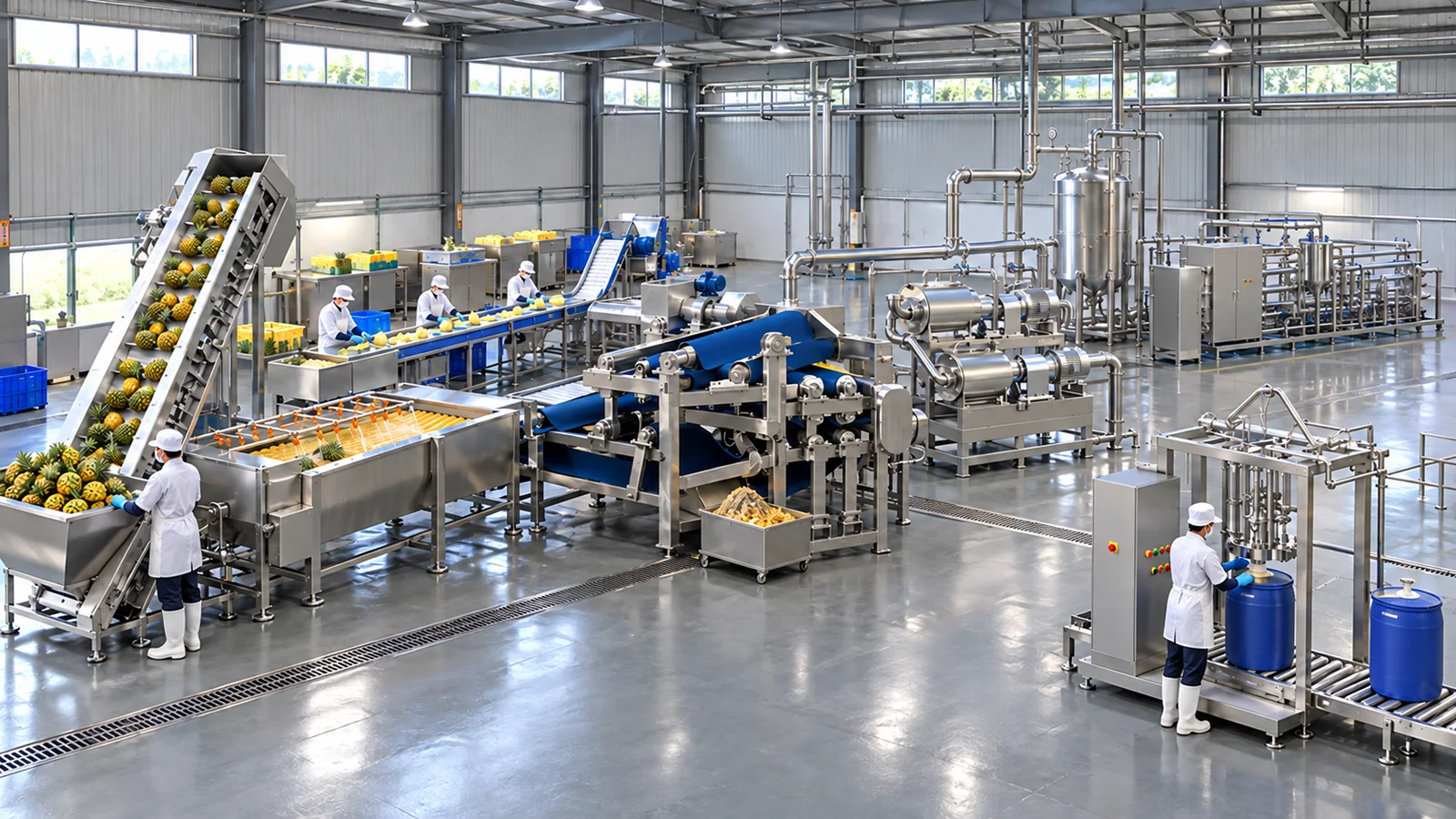

Illustrated product route: Pineapple juice
Product directions to specify
- NFC juice
- juice concentrate
- pulpy beverage base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Will extraction start from whole pineapples or from prepared flesh and trim, and which fruit shapes must the chosen feed arrangement handle?
- What limit applies to eye or peel specks and long fibres, and should edible core material be included in the same juice stream or evaluated separately?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive and size fruit
Identify accepted pineapple dimensions and condition.
Record variety and size limits so the extraction arrangement can be assessed against the real supply.
Equipment duty: Inspection conveyor and fruit-size grader
- 02
Wash and prepare the exterior
Clean fruit before edible juice extraction.
Specify which crown, end or other preparation operations are included rather than omitting them from the line boundary.
Equipment duty: Fruit washer and defined crown/end preparation
- 03
Extract with peel control
Recover juice and pulp while separating the unwanted exterior.
Do not combine peel-rich recovery with the primary juice without a separate product-quality assessment.
Equipment duty: Pineapple-compatible extractor or defined prepared-flesh press
- 04
Remove coarse fibre
Set the accepted fibre and coarse-particle level.
Compare mouthfeel, skin specks and recovery rather than selecting separation intensity solely by liquid output.
Equipment duty: Depulper or juice finisher
- 05
Assess optional recovery
Evaluate any additional recovered stream independently.
Record added water and keep the stream identified until its use in the product is justified.
Equipment duty: Separate pulp-wash or secondary extraction circuit, if specified
- 06
Supply the selected juice route
Connect accepted juice to single-strength treatment or concentration.
Concentrate, aroma recovery and solid-pack integration need distinct scope and acceptance criteria.
Equipment duty: Covered buffer and optional evaporation connection
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The peel-separated juice route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Inspection conveyor and fruit-size grader
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Pineapple-compatible extractor or defined prepared-flesh press
Preparation and extraction.
A trial should distinguish the edible fraction entering extraction from whole-fruit weight. The agreed pulp or seed character determines how much separation follows the initial extraction.
Depulper or juice finisher
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Assess skin specks, coarse fibre, flavour, colour and the accepted pulp level. Compare primary and secondary streams separately before blending.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Identify crown/end material, peel, coarse fibre and any secondary recovery fraction. Keep added extraction water visible in the material balance.
Cleaning and the packed-product boundary
Fibres can collect around screens, transfer fittings and extractors. Inspect those points and any optional secondary-recovery circuit independently.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the peel-separated juice is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Trial fruit-size extremes and the chosen peel-control method, comparing the final product and rejected fibre with the intended juice specification.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Pineapple processing questions
Is every pineapple line a canning or slice line?
No. A dedicated juice line and a solid-pack operation have different preparation and product streams. Identify the actual supplied route and any integration points explicitly.
Should pulp-wash liquid automatically count as juice recovery?
Record it as a separate stream with its added water and quality. Its acceptable use depends on product identity and the developed specification, not simply on increasing the liquid total.
What should a useful pineapple trial establish?
Trial fruit-size extremes and the chosen peel-control method, comparing the final product and rejected fibre with the intended juice specification. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
