From ingredient to a defined product
Mandarin and tangerine lots can differ in peel adherence, seed content and aroma. The plant should preserve lot identity long enough to decide whether those differences can be combined in the same finished product. Receive and sort mandarins separately where size and peel looseness differ from oranges. Wash, extract with limited peel disruption and remove seeds or coarse membranes. Set the pulp specification before blending. A marmalade route deliberately retains selected peel and therefore requires its own preparation and texture specification.

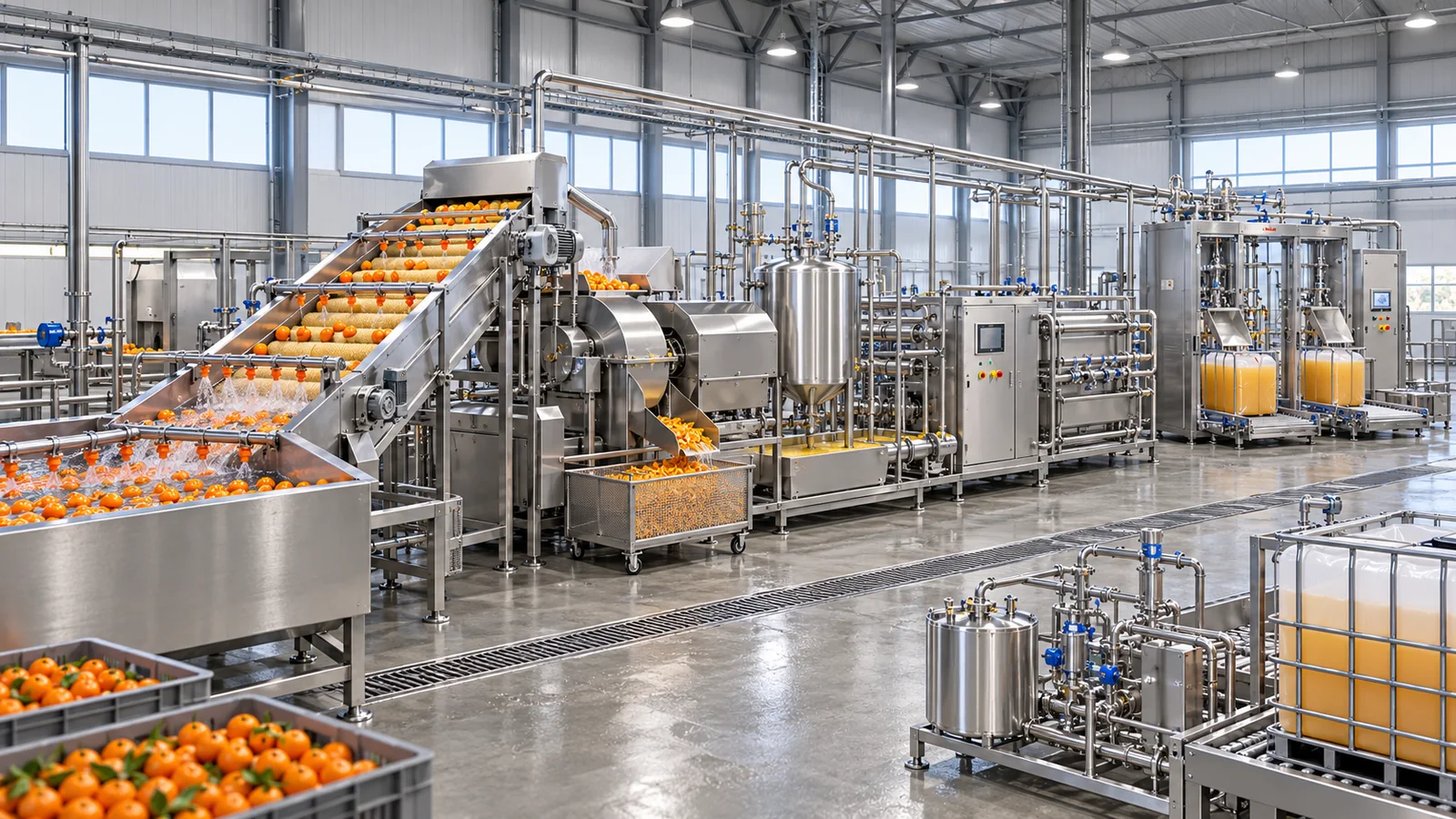

Illustrated product route: Mandarin juice
Product directions to specify
- juice
- juice blend base
- marmalade
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Can the extraction setup accommodate the actual mandarin size distribution and loose peel without excessive peel pickup or lost flesh?
- Is the goal a standalone mandarin juice or a blend component, and how will batches be accepted for peel flavour, sweetness and pulp character?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive by variety
Inspect incoming fruit and remove spoiled or unsuitable units.
Record easy-peeling versus more adherent rind behaviour; a trade name alone is not enough to describe how fruit will feed and open.
Equipment duty: Gentle receiving conveyor and grader
- 02
Clean without unnecessary damage
Clean the surface before fruit enters the extraction area.
Assess handling damage on the softest accepted lot, especially when a mixed supply includes different maturity levels.
Equipment duty: Citrus washer and controlled rinse elevator
- 03
Extract the flesh fraction
Recover juice while managing peel contact and seed disruption.
Compare rind pickup and aroma against the target juice; extra mechanical intensity is not automatically a quality improvement.
Equipment duty: Size-compatible citrus extractor
- 04
Finish to the pulp brief
Separate coarse tissue and set the retained pulp character.
Agree whether visible pulp is desirable in the retail juice or undesirable in a smooth blend ingredient.
Equipment duty: Seed separator and staged finisher
- 05
Compare aroma and lot balance
Evaluate acceptable lots on the same sensory and analytical basis.
Keep an unblended reference so a change in variety or ripeness is not hidden by the final blend.
Equipment duty: Covered blend tank and sample station
- 06
Prepare the chosen juice route
Send approved juice to a single-strength or concentrated product route.
Document aroma and pulp expectations through downstream treatment rather than promising fresh-fruit character from extraction alone.
Equipment duty: Closed buffer and preservation interface
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The aromatic citrus juice route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Gentle receiving conveyor and grader
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Size-compatible citrus extractor
Juice extraction and peel separation.
Extraction contact and fruit dimensions should be evaluated together. Confirm the accepted pulp and peel character before comparing recovery. A separate rind-oil operation needs its own specification.
Seed separator and staged finisher
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Compare aroma, peel notes, bitterness and pulp settling with recorded variety and maturity. Follow the same sample holding interval for comparative sensory work.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Separate peel, seeds and membrane-rich rejects from usable juice. An oil or peel-derived ingredient project should have its own processing and storage specification.
Cleaning and the packed-product boundary
Peel oils and pulpy deposits need an actual cleaning study. Provide access to extraction contact parts and finisher screens, not only a tank-cleaning connection.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the aromatic citrus juice is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Include at least the softest fruit, the highest expected seed load and different accepted varieties when demonstrating feed control and finished-juice character.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Mandarin / Tangerine processing questions
Why record the variety when buying a mandarin line?
Rind behaviour, dimensions, seeds and flavour vary between supplies. Those differences affect preparation and the buyer’s quality target, so a useful trial records the variety and maturity rather than using an unidentified mixed batch.
Should the juice be clarified?
That is a product decision. A pulpy mandarin juice and a smooth blend base require different finishing outcomes. Clarification is an additional route, not a default description of every citrus line.
What should a useful mandarin / tangerine trial establish?
Include at least the softest fruit, the highest expected seed load and different accepted varieties when demonstrating feed control and finished-juice character. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
