From ingredient to a defined product
A lemon project starts with acidity, aroma and the intended use of the juice. Juice production, peel-oil recovery and marmalade are different product streams, each with its own quality specification. Clean and inspect the peel before juice extraction, then remove seeds and finish the expressed liquid. Clear lemon juice and cloudy lemon ingredients require different clarification decisions. Keep any peel-oil or peel-preserve preparation as an explicitly defined branch, rather than assuming it is recovered with the juice.

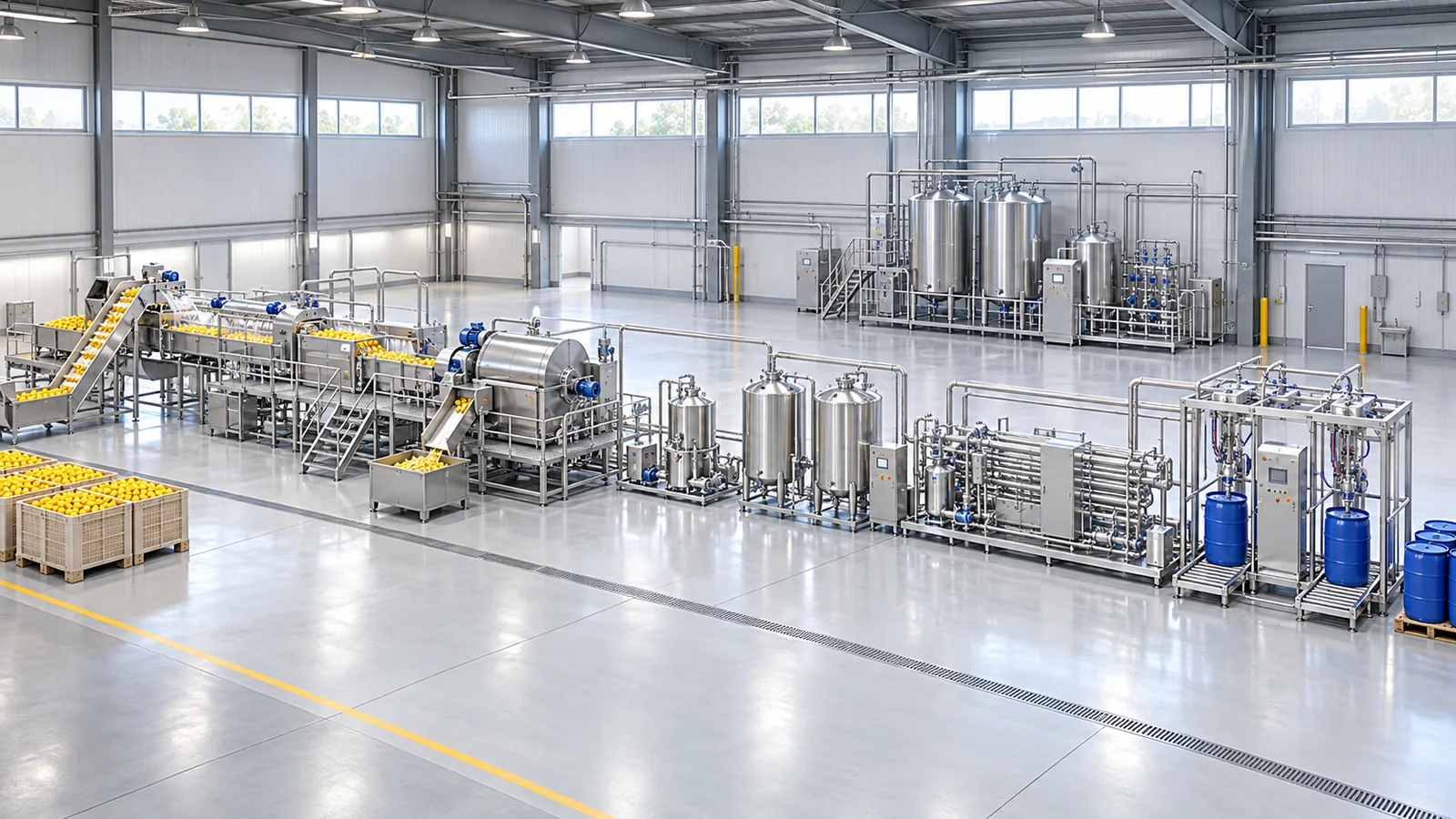

Illustrated product route: Lemon juice
Product directions to specify
- juice
- juice concentrate
- marmalade base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Does the buyer require clear or cloudy lemon juice, and which sediment or haze limits will define acceptance after storage?
- Will oil-rich peel be processed separately, and what variation in fruit size, peel thickness and acidity must extraction trials include?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive and grade
Reject spoiled fruit and group the accepted lemon size range.
Seasonal differences in rind thickness and fruit dimensions should be recorded alongside the lot identification.
Equipment duty: Inspection conveyor and citrus size grader
- 02
Clean the rind
Clean the outer surface before any cut or squeeze.
Where oil is a separate product, specify its collection boundary before selecting a rind-treatment arrangement.
Equipment duty: Washer, rinse section and brush unit
- 03
Extract the juice
Recover the juice while controlling contact with peel and seeds.
Do not use rind aroma as a substitute for a peel-oil carryover specification; the juice buyer may require a different sensory balance.
Equipment duty: Lemon-compatible citrus extractor
- 04
Finish the liquid
Remove seeds and coarse tissue to the declared pulp level.
A culinary juice, beverage blend and concentrate base may accept different amounts of suspended material.
Equipment duty: Seed screen and adjustable juice finisher
- 05
Standardise the lot
Record measured acidity, soluble solids and sensory character before combining lots.
Any water, sweetener or other ingredient changes product identity and must belong to an approved formulation, not an extraction yield calculation.
Equipment duty: Covered blend tank and sampling points
- 06
Choose the final route
Keep single-strength juice and concentrate specifications separate.
Concentrating changes handling and the aroma question; specify the desired concentrate basis and reconstitution use before equipment selection.
Equipment duty: Sanitary buffer and optional evaporator interface
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The juice and concentrate base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Inspection conveyor and citrus size grader
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Lemon-compatible citrus extractor
Juice extraction and peel separation.
Extraction contact and fruit dimensions should be evaluated together. Confirm the accepted pulp and peel character before comparing recovery. A separate rind-oil operation needs its own specification.
Seed screen and adjustable juice finisher
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Use a defined acidity test, soluble-solids record and sensory comparison. Check sediment after representative holding instead of judging only the sample collected immediately after finishing.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Keep rind, seeds and coarse pulp outside the finished-juice circuit. Potential oil, pectin or other co-products require separate process development and are not assumed saleable outputs.
Cleaning and the packed-product boundary
Rind oil and fine pulp require attention at seals, screens and product-contact surfaces. Establish cleaning verification for the actual soil and any shared citrus recipes.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the juice and concentrate base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Compare rind contact and finishing settings using the customer’s intended beverage or culinary application, not only the undiluted extraction sample.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Lemon processing questions
Does high acidity remove the need for process validation?
No. The measured product, final package and intended distribution must be assessed together. A fruit name or an acidic taste does not validate preservation, filling hygiene or shelf life.
Should peel oil enter the juice?
The acceptable amount depends on the product specification. A separately designed oil-recovery route and controlled juice extraction are different operations; neither should be implied by a generic lemon-line drawing.
What should a useful lemon trial establish?
Compare rind contact and finishing settings using the customer’s intended beverage or culinary application, not only the undiluted extraction sample. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
