From ingredient to a defined product
Jujube, or Chinese red date, is not date-palm fruit. Fresh and dried jujube need different inlet definitions, with stone removal and any water or conditioning step recorded before a purée or extraction route is selected. Treat jujube as its own raw material, distinct from date-palm fruit. Sort and wash fresh or dried jujubes, separate pits and prepare the flesh for pulping or extraction. Dried fruit may need a defined softening stage. Paste filling and beverage ingredients require different retention of skin and other insoluble material.

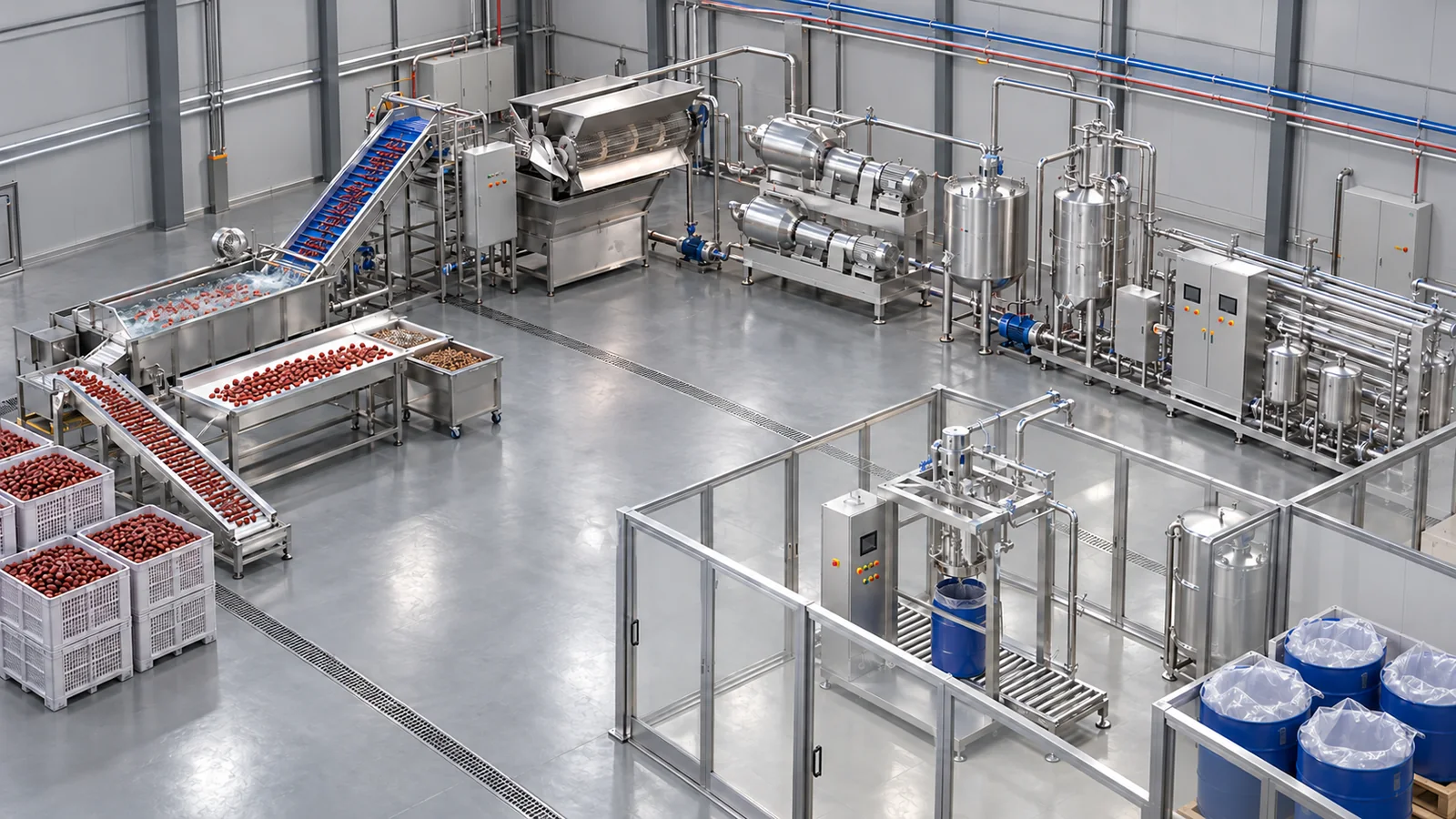

Illustrated product route: Jujube puree
Product directions to specify
- jujube paste
- juice beverage base
- jam
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Will the plant use fresh jujubes, dried red dates or both, and which pit-removal and softening steps are included?
- Should the buyer receive a dark whole-fruit paste, a smoother refined filling or an extracted beverage base, and what skin particles and pit-fragment limits apply?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Identify the incoming material
Record jujube type, maturity and fresh or dried supply condition.
Do not combine date-palm fruit assumptions with a jujube preparation specification.
Equipment duty: Receiving and inspection station
- 02
Clean the declared supply
Remove foreign matter and unsuitable fruit.
A dried feed may need a separately developed preparation sequence; it should not inherit a fresh-fruit wash by default.
Equipment duty: Appropriate cleaning and inspection arrangement
- 03
Remove pits
Separate the hard pits from the edible fraction.
Assess fragments and retained flesh on the actual size and condition range.
Equipment duty: Jujube-compatible pitter and inspection point
- 04
Prepare a controlled flesh feed
Develop the inlet condition required for pulping.
Record any added water and preparation changes separately from recovered fruit flesh.
Equipment duty: Cutter and defined conditioning vessel where needed
- 05
Pulp and refine
Meet the selected skin, fibre and consistency requirements.
A whole-flesh purée and an extracted juice product retain different fractions and need separate acceptance criteria.
Equipment duty: Purée pulper-refiner
- 06
Transfer the chosen ingredient
Supply the declared purée, filling or separately developed juice route.
Concentration and formulated paste production are additional product decisions.
Equipment duty: Covered tank and viscosity-compatible pump
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The pitted jujube purée route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Receiving and inspection station
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Jujube-compatible pitter and inspection point
Material-specific preparation.
The preparation section must address the actual peel, pit, shell or seed structure. Fruit names alone do not define a suitable inlet condition for the next machine.
Cutter and defined conditioning vessel where needed
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Check pit fragments, skin and fibre character, flavour and consistency with fresh/dried supply state recorded. Compare like-for-like samples rather than unidentified mixed feeds.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Keep pits, skins and coarse fibre rejects identified. Any extraction water and secondary liquid stream must be visible in the material balance.
Cleaning and the packed-product boundary
Hard pits and sticky rehydrated or fresh flesh require inspection access at pitting, screens and transfer fittings. Cleaning procedures should reflect the actual incoming route.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the pitted jujube purée is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Trial the declared fresh or dried jujube supply, maintaining a separate water balance and pit-rejection record.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Jujube / Chinese Red Date processing questions
Are jujube and date-palm fruit interchangeable?
No. They are different fruits with different preparation conditions. The raw-material name, supply state and intended product should be explicit in the project brief.
Can dried jujube use the fresh-fruit settings?
A dried inlet may need conditioning or extraction development and a declared water balance. Those operations should be specified and demonstrated rather than assumed to match fresh-fruit preparation.
What should a useful jujube / chinese red date trial establish?
Trial the declared fresh or dried jujube supply, maintaining a separate water balance and pit-rejection record. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
