From ingredient to a defined product
Grape variety and the desired colour guide the extraction brief. Destemming, seed integrity and skin contact should be considered alongside pressing and any later clarification; wine equipment terminology does not define a non-alcoholic juice process. Remove unwanted stems, inspect and crush grapes before the chosen pressing route. Skin contact affects colour extraction, so white and deeply coloured juices should not share an assumed recipe. Clarification and management of later crystalline deposits are additional product decisions before concentration or packing.

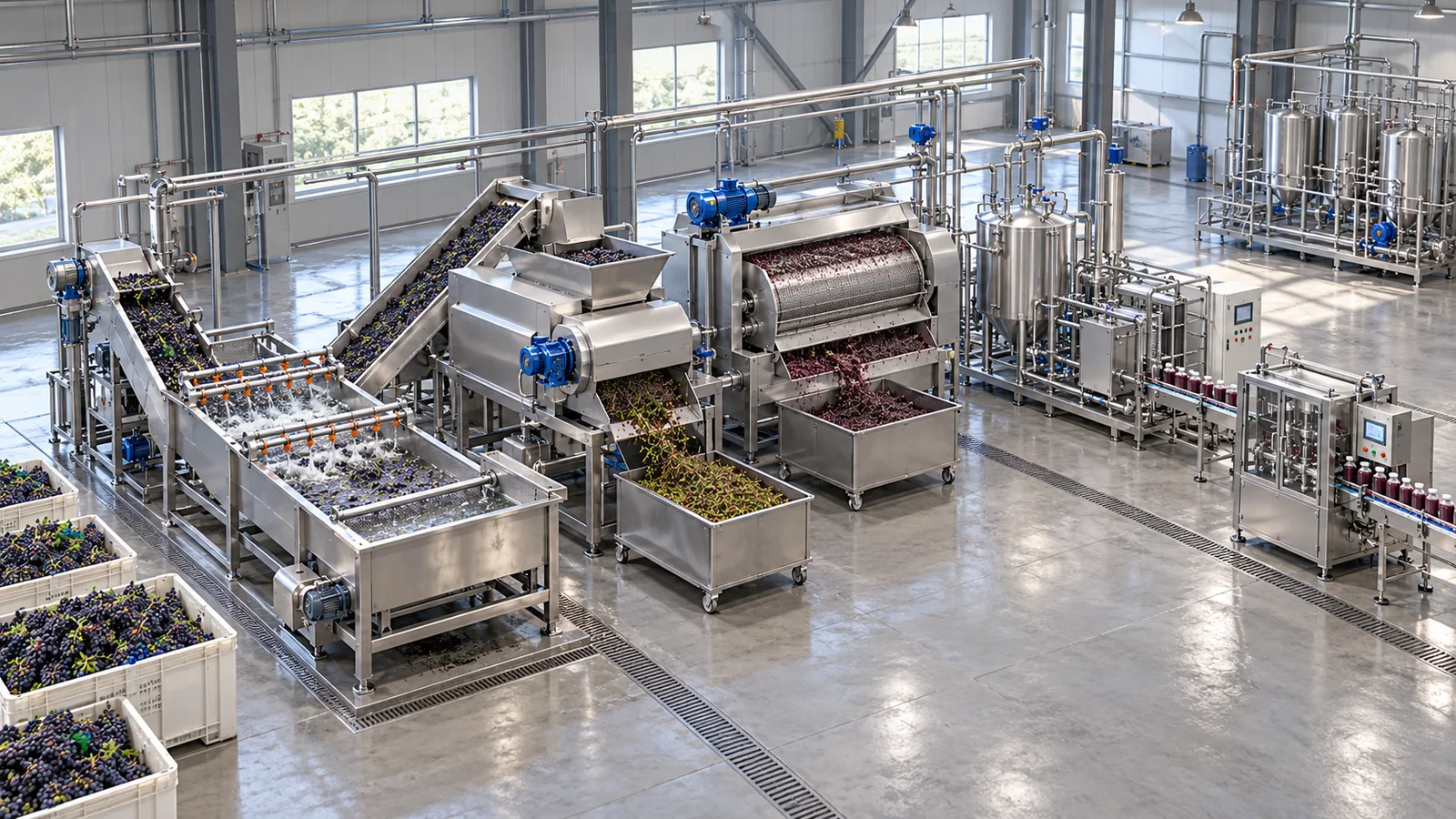

Illustrated product route: Grape juice
Product directions to specify
- grape juice
- juice concentrate
- jelly base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Which grape varieties and target colour will be used, and should the process maximise skin colour extraction or minimise it?
- How will the finished juice be checked for tartrate deposits during its intended storage, and what stem and seed carryover can the extraction stage tolerate?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive separate lots
Inspect bunches and identify the variety and condition.
Keep light and dark juice objectives visible in the lot records rather than treating all grapes as one interchangeable feed.
Equipment duty: Inspection conveyor and receiving hopper
- 02
Destem and clean
Separate stems and foreign matter from the edible fruit fraction.
Stems and attached debris need their own reject route before crushing and pressing.
Equipment duty: Destemmer with inspected feed and cleaning arrangement
- 03
Open the berries
Prepare a consistent feed without unnecessary seed disruption.
Assess the accepted amount of skin contact and seed carryover for the intended flavour and colour.
Equipment duty: Controlled crusher
- 04
Develop the extraction route
Recover juice from the prepared grape feed.
A coloured juice may need a different skin-contact development trial from a light juice; no fixed conditioning recipe is assumed.
Equipment duty: Covered conditioning vessel where required and juice press
- 05
Review clarity and deposits
Separate coarse solids and evaluate the desired final appearance.
Investigate sediment or crystalline deposits through representative holding trials rather than treating a newly filtered sample as a finished stability result.
Equipment duty: Screen, buffer vessel and selected clarification equipment
- 06
Select concentration or direct treatment
Send approved juice to its specified downstream route.
Concentrate is a different product specification with different handling and reconstitution requirements.
Equipment duty: Closed juice buffer and optional evaporator interface
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The juice or concentrate base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Inspection conveyor and receiving hopper
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Controlled crusher
Pressing or refining.
A press separates liquid from a prepared feed, while a refiner develops a flesh-containing product. The buyer should define which fraction is sold before selecting the separation train.
Covered conditioning vessel where required and juice press
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Record colour, flavour, acidity, soluble solids and sediment behaviour together. Compare samples using the same holding and preparation method.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Collect stems, skins and seeds separately from juice. Their proposed co-product use does not automatically belong to the juice line supply.
Cleaning and the packed-product boundary
Stem fragments and skins can accumulate in crusher and press contact points. Include press-surface access, screening inspection and a separate cleaning plan for any clarification equipment.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the juice or concentrate base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Trial declared grape varieties and review colour extraction, seed integrity and settled samples after consistent holding.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Grape processing questions
Is a grape juice plant a winemaking line?
No. Non-alcoholic juice has a different product and preservation brief. Shared operations such as destemming or pressing do not establish the rest of the process or its hygiene and distribution requirements.
Why can a clear sample later form deposits?
The sample’s appearance immediately after separation is only one observation. The product brief should include representative holding trials and investigation of the particular sediment or crystals, with an appropriate process developed for that product.
What should a useful grape trial establish?
Trial declared grape varieties and review colour extraction, seed integrity and settled samples after consistent holding. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
