From ingredient to a defined product
Cucumber juice preparation needs a defined peel, seed and texture objective. The chosen variety, size and intended beverage use should guide trimming and extraction rather than assuming all watery vegetables behave alike. Wash and inspect cucumbers, trim unsuitable portions and decide whether peel and mature seeds belong in the product. Reduce the prepared fruit and extract juice, then finish to the agreed pulp level. Formulated blends require their own recipe; a cucumber juice specification alone does not define the complete beverage.

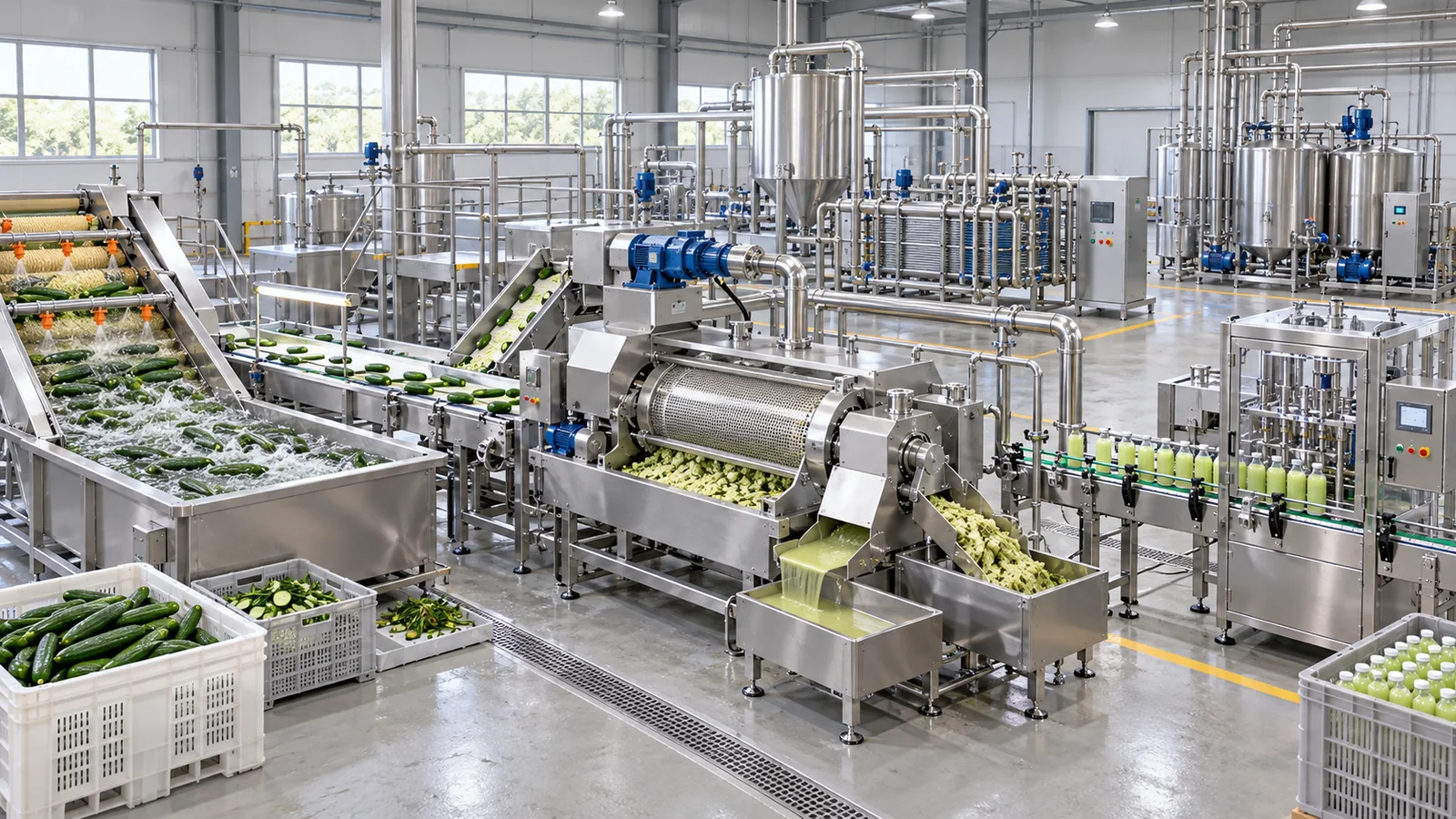

Illustrated product route: Cucumber juice
Product directions to specify
- juice
- blended vegetable beverage base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Is the desired ingredient pale and mild or greener with peel character, and how will that decision change preparation?
- What maturity and seed development will incoming cucumbers have, and can the proposed extraction trial demonstrate acceptable bitterness, coarse material and sediment without losing the intended fresh flavour?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive variety-defined cucumbers
Identify accepted size, maturity and defects.
Include the actual seed and skin character of the purchased supply in the product brief.
Equipment duty: Inspection conveyor and receiving station
- 02
Wash and rinse
Remove external debris before edible preparation.
Keep dirty receiving water outside the clean cutting and extraction path.
Equipment duty: Vegetable washer and controlled rinse
- 03
Trim and set peel inclusion
Prepare the accepted edible fraction.
A skin-retaining juice and a peeled-flesh base should be assessed against different appearance and flavour targets.
Equipment duty: Trimming and optional peeling arrangement
- 04
Prepare the feed
Develop a reproducible extraction feed.
Record the feed condition instead of comparing press trials made with different preparation methods.
Equipment duty: Cutter or controlled crusher
- 05
Separate the product
Recover the specified liquid or pulp-containing ingredient.
Evaluate seed and coarse-skin carryover along with juice quality and rejected solids.
Equipment duty: Juice press or selected pulper
- 06
Finish and transfer
Meet the declared pulp and coarse-particle requirement.
A blended beverage adds its own formulation and final preservation specification.
Equipment duty: Finishing screen and covered juice buffer
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The juice or beverage blend base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Inspection conveyor and receiving station
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Trimming and optional peeling arrangement
Soil removal and texture development.
Preparation, particle size and any conditioning step should be evaluated for the actual vegetable and product. Do not borrow a fruit-juice preservation schedule for a vegetable formulation.
Cutter or controlled crusher
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Review peel notes, flavour, seed fragments, cloud and settling on identified lots. Evaluate the intended blend as well as the plain ingredient.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Keep peel/trim material and seed-rich or fibrous rejects identified. Any added water or formulation ingredient should remain separate from extraction recovery.
Cleaning and the packed-product boundary
Skin and seed residues require accessible preparation, press and screen contact points. Define cleaning responsibilities for dirty washing and the closed juice circuit separately.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the juice or beverage blend base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Compare accepted variety and maturity limits with the chosen skin-retaining or peeled product objective.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Cucumber processing questions
Must cucumbers be peeled for juice?
The product brief should decide. Agree appearance, flavour and coarse-particle limits, then evaluate the selected preparation route rather than assuming one universal peeling requirement.
Does high moisture make the product automatically stable?
No. The actual composition, preservation, filling and storage system need assessment. Easy liquid recovery does not establish a safe final product or shelf life.
What should a useful cucumber trial establish?
Compare accepted variety and maturity limits with the chosen skin-retaining or peeled product objective. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
