From ingredient to a defined product
The illustrated coconut-milk route begins with prepared edible kernel. Whole-coconut dehusking, shell removal and coconut-water collection are upstream or separate projects and should not be inferred from a kernel-milk line. Specify coconut water and coconut kernel as distinct incoming streams. Water is collected and screened; milk and cream require shell removal, kernel preparation, size reduction and liquid extraction. The milk route then needs fat and solids adjustment and emulsion development. One shared downstream description cannot replace these different front ends.

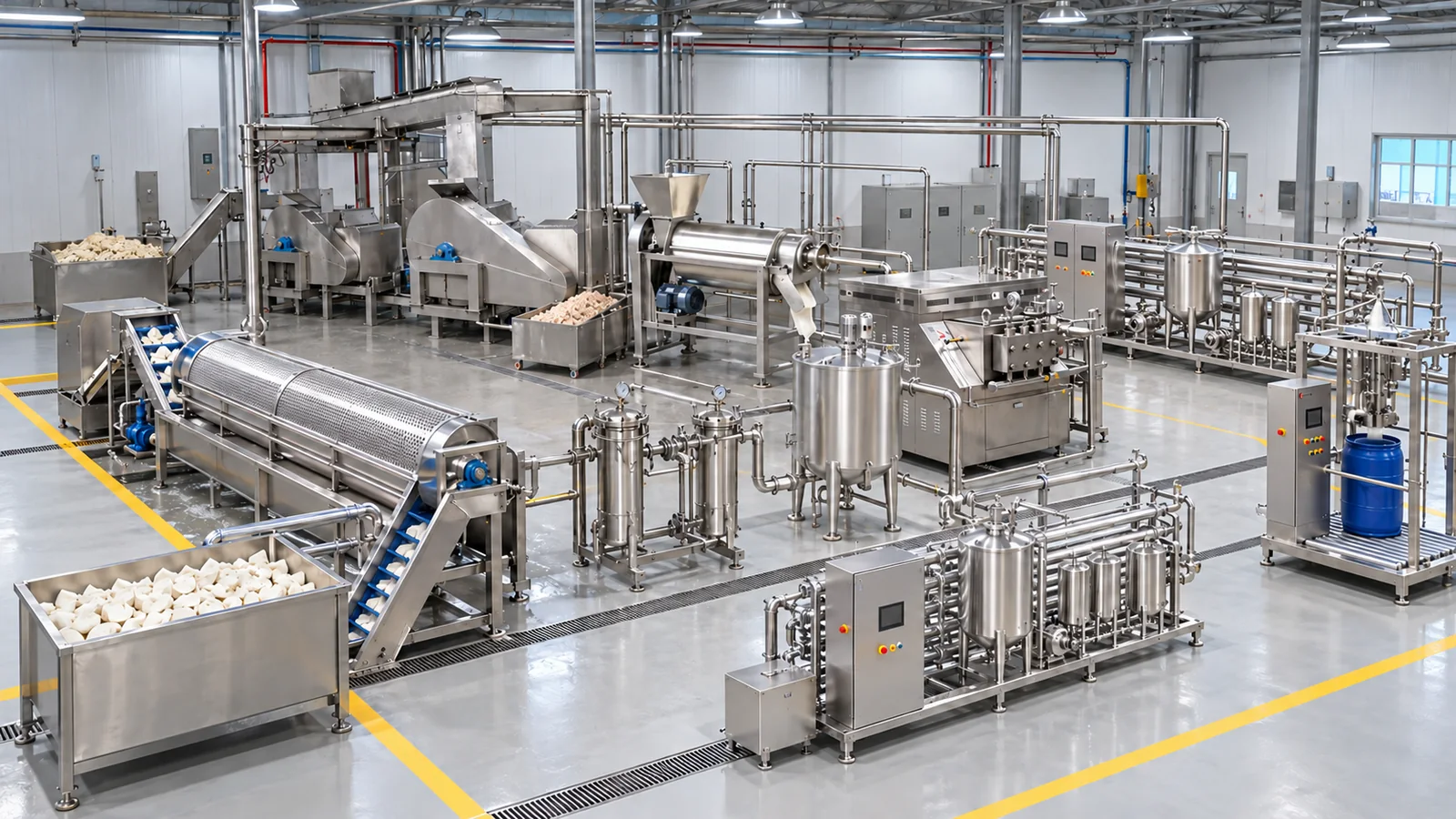

Illustrated product route: Coconut milk
Product directions to specify
- coconut milk
- coconut cream
- coconut water
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Will the plant receive whole coconuts, prepared kernel or bulk coconut ingredients, and who owns dehusking, deshelling and brown-skin removal?
- Is the saleable product water, milk or cream, and which fat content, particle size and separation limits must samples demonstrate?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive prepared kernel
Confirm the accepted edible-kernel condition and reject shell contamination.
The supply specification should say whether shell removal and paring were completed before this line boundary.
Equipment duty: Kernel receiving and inspection station
- 02
Clean and inspect the kernel
Remove unwanted material before size reduction.
Inspect for shell or paring residues and define the clean-kernel transfer arrangement.
Equipment duty: Kernel washer and inspection conveyor
- 03
Reduce kernel size
Prepare kernel for the defined milk-extraction process.
Match the feed to the actual extraction unit rather than using an undefined mixture of large pieces and fines.
Equipment duty: Cutter, grater or selected size-reduction unit
- 04
Extract the milk fraction
Recover the selected liquid-and-solids product.
Record kernel input, extraction water and press cake separately; coconut water is not the same product.
Equipment duty: Kernel-milk extractor or press with measured water input where specified
- 05
Set coarse solids and recipe
Develop the intended coconut-milk consistency and formulation.
A richer milk ingredient and a formulated drink need different product identity and solids targets.
Equipment duty: Finishing screen and controlled blend vessel
- 06
Develop downstream handling
Supply the selected milk product to its treatment and filling route.
Any homogenisation or separation operation needs a defined purpose and product-specific evaluation.
Equipment duty: Suitable mixer, emulsion-development interface and buffer
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The prepared-kernel milk route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Kernel receiving and inspection station
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Cutter, grater or selected size-reduction unit
Kernel preparation and beverage development.
Whole-kernel wet processing and reconstitution from a purchased paste are different incoming-material routes. Solids, formulation and desired suspended particles determine the separation and homogenisation brief.
Kernel-milk extractor or press with measured water input where specified
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Assess shell fragments, coarse fibre, measured solids, flavour and phase behaviour. Review the actual milk or beverage recipe through its selected downstream handling.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Keep shell residues, parings and kernel press cake separately identified. Coconut-water collection and its handling system are not automatically included in a kernel-milk project.
Cleaning and the packed-product boundary
Fat-containing milk and fibrous kernel soils require cleaning verification on mills, extractors, screens and transfer seals. Keep dirty upstream coconut handling outside the clean kernel-milk circuit.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the prepared-kernel milk is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Trial the specified prepared kernel and water balance, then compare milk and press cake against the intended product identity.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Coconut processing questions
Is coconut milk extracted coconut water?
No. Coconut milk is developed from edible kernel, while coconut water is the liquid collected from the fruit cavity. Their receiving and processing routes must be specified separately.
Does the illustration include whole-coconut dehusking?
No. This route starts with prepared kernel. If whole coconuts are purchased, the upstream dehusking, shell removal, paring and water-handling boundaries need their own engineering scope.
What should a useful coconut trial establish?
Trial the specified prepared kernel and water balance, then compare milk and press cake against the intended product identity. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
