From ingredient to a defined product
Cherry lines must separate stems and stones while retaining the chosen juice or purée character. Fruit size, firmness and the intended amount of skin-derived colour are useful trial variables, rather than a single nominal throughput. Remove stems and unsuitable cherries, wash gently and separate stones before the chosen juice or purée route. Pressed juice may be clarified; a fruit preparation can retain more flesh. Select sweet or sour cherry as an incoming-material specification rather than treating their final flavour targets as interchangeable.

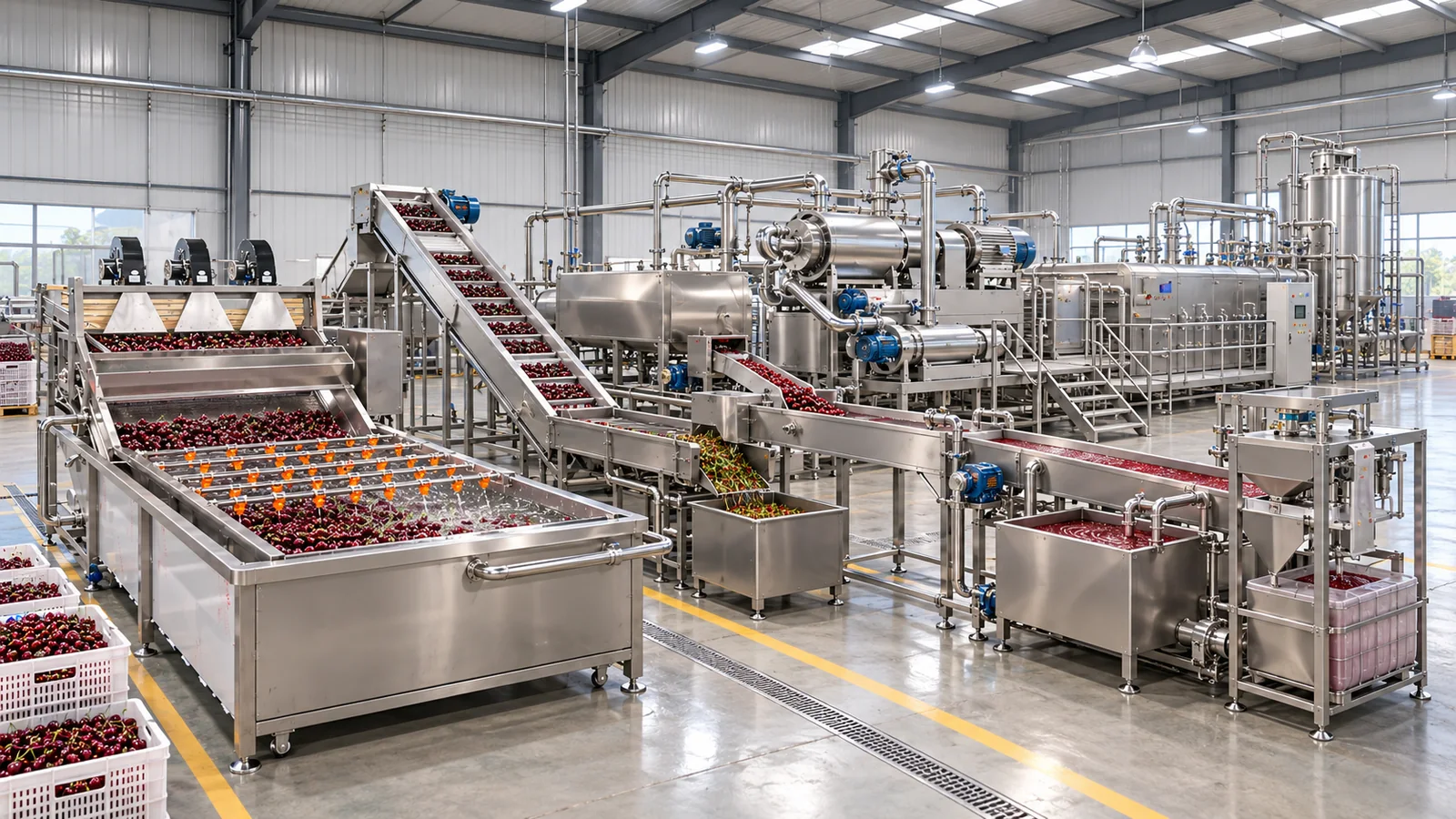

Illustrated product route: Cherry puree
Product directions to specify
- juice
- juice concentrate
- purée
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Will sweet cherries, sour cherries or both be processed, and how will their lots be kept distinct in the finished product?
- What verification will detect residual pits and pit fragments, and how much flesh and skin may remain in a juice compared with the intended purée?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive separate lots
Identify the cherry type and reject spoiled fruit.
Keep lot condition and size distribution with the trial record so pitting results can be interpreted.
Equipment duty: Receiving conveyor and inspection station
- 02
Clean and remove stems
Remove surface debris and stems before stone separation.
Verify how damaged fruit and detached stems leave the line instead of remaining in the feed.
Equipment duty: Gentle washer and destemming arrangement
- 03
Pit with controlled feeding
Separate the hard stones from the edible fraction.
Examine residual stones and fragments in the product and flesh retained in the reject stream separately.
Equipment duty: Cherry-compatible pitter or destoner
- 04
Select juice or purée
Develop the specified liquid or flesh-containing ingredient.
A dark juice and a smooth purée require different decisions about skin and suspended material.
Equipment duty: Press or pulper-refiner
- 05
Finish the selected stream
Reduce coarse skin or remaining seed-related material to the agreed level.
Accept the result against a defined sample; excessive separation can change both recovery and character.
Equipment duty: Screen and product-specific finisher
- 06
Prepare downstream transfer
Connect the finished cherry ingredient to its specified final route.
Keep concentration and fruit-base formulation as separate scope decisions.
Equipment duty: Covered product tank and suitable pump
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The pitted cherry juice or purée route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Receiving conveyor and inspection station
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Cherry-compatible pitter or destoner
Pitting and flesh finishing.
A pitting demonstration should account for stone fragments, retained flesh and the rejected fraction. Additional recovery from stones must not compromise the finished product acceptance criteria.
Press or pulper-refiner
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Verify stone rejection, colour, flavour and the desired skin/pulp character. The same sampling basis should be used when comparing pitting or finishing settings.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Collect stems, stones and skin-rich rejects with traceable separation from product. Proposed stone or skin co-products need their own handling plan.
Cleaning and the packed-product boundary
Small stems and stone fragments need accessible collection points. Inspect pitter and screen areas independently of closed-tank cleaning.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the pitted cherry juice or purée is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Compare fruit-size extremes and accepted firmness levels, checking pitting and the final juice or purée sample in the same trial.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Cherry processing questions
Does a cherry pitter determine the whole line?
No. Receiving, stem removal, extraction, finishing and the final product route must also be defined. A satisfactory pitting sample does not establish preservation or filling performance.
Should skins be removed completely?
That depends on the specified product. Skin-derived colour and texture may be useful, while coarse pieces may be unacceptable. Define the intended ingredient and assess representative samples before selecting the finishing severity.
What should a useful cherry trial establish?
Compare fruit-size extremes and accepted firmness levels, checking pitting and the final juice or purée sample in the same trial. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
