From ingredient to a defined product
Celery juice preparation should account for soil, damaged material and long fibrous stalks. The condition and size of the feed entering the press are useful design variables; an unrecorded change in cutting can invalidate comparisons. Separate and clean the edible celery portions, then chop or shred the fibrous stalks to suit the extraction method. Press and screen the juice to the required solids level. Feed preparation matters to handling and extraction; equipment trials with whole stalks should not automatically stand in for a consistently cut production feed.

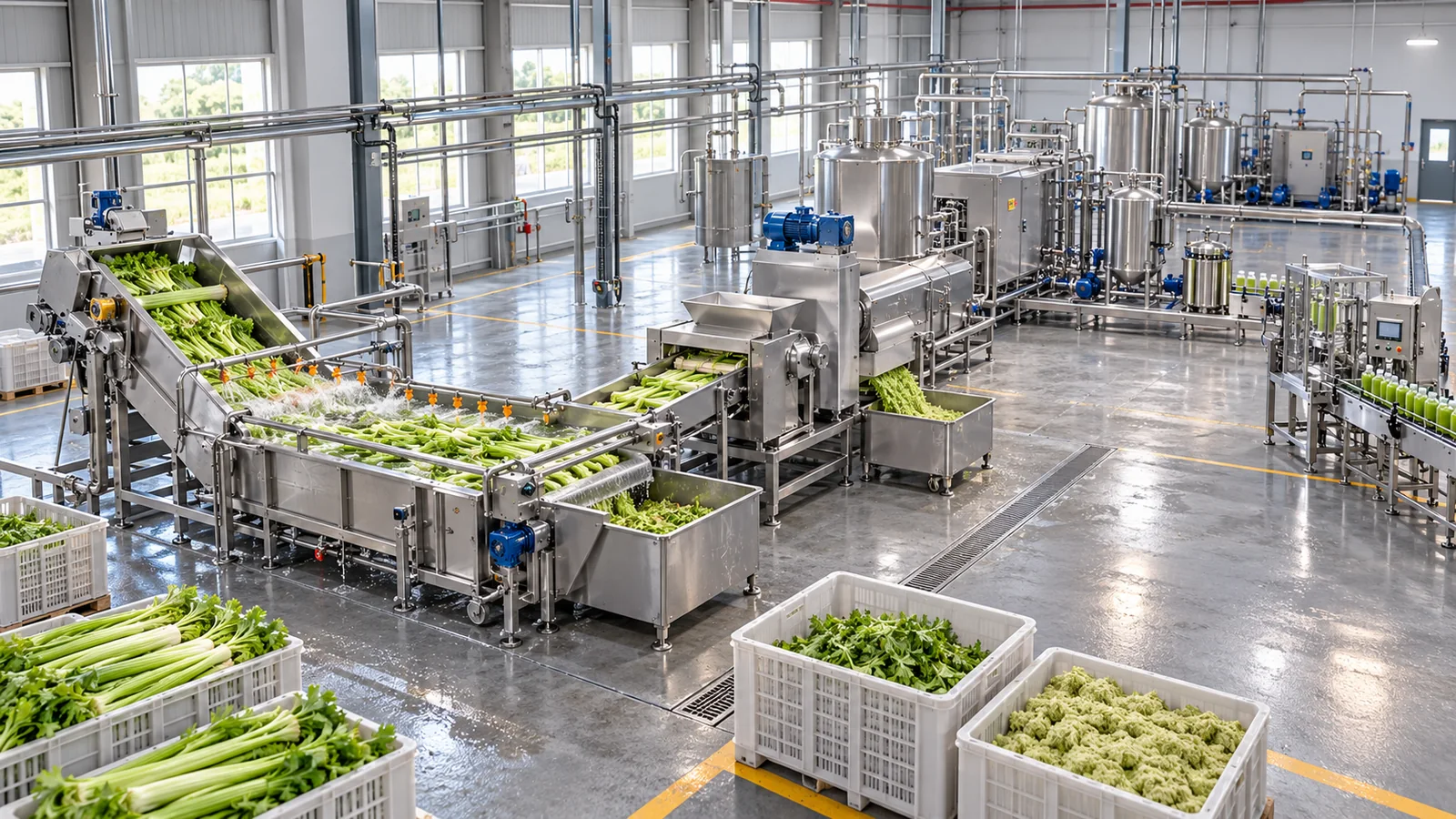

Illustrated product route: Celery juice
Product directions to specify
- juice
- vegetable blend base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Will the contracted ingredient contain stalks only or include leaves, and what soil or fibrous trim must be removed before extraction?
- Which feed length and preparation method work with the chosen equipment, and what residual fibre, sediment and celery flavour intensity must the buyer approve?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Inspect incoming celery
Identify accepted stalk condition and remove unsuitable material.
State whether leaves and basal portions are included or removed in the purchased feed specification.
Equipment duty: Receiving conveyor and inspection table
- 02
Separate soil and debris
Clean the intended edible fraction before cutting.
Keep dirty wash water and basal trim outside the clean extraction path.
Equipment duty: Vegetable washer and controlled rinse
- 03
Trim to the product brief
Prepare the defined stalk and leaf fraction.
A stalk-only and a whole-edible-plant feed should not be compared as though they were the same material.
Equipment duty: Trimming and inspection station
- 04
Control cutting
Present a repeatable fibrous feed to pressing.
Record the prepared feed condition; cutting can change separation behaviour and the suspended solids entering the juice.
Equipment duty: Chopper or shredder
- 05
Press and collect
Separate liquid from the fibrous fraction.
Compare juice quality and rejected fibre as well as gross liquid recovery.
Equipment duty: Vegetable-compatible juice press
- 06
Finish the juice
Meet the intended pulp and particle requirement.
Further clarification or a formulated blend is a separately developed route.
Equipment duty: Coarse screen and covered buffer
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The pressed stalk juice route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Receiving conveyor and inspection table
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Trimming and inspection station
Soil removal and texture development.
Preparation, particle size and any conditioning step should be evaluated for the actual vegetable and product. Do not borrow a fruit-juice preservation schedule for a vegetable formulation.
Chopper or shredder
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Assess soil or grit, fibrous particles, flavour and sediment with the actual feed preparation recorded. Do not use a vendor’s trial output as a performance guarantee.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Collect basal trim, damaged material and fibrous press cake separately. A proposed fibre co-product requires an independent acceptance and handling plan.
Cleaning and the packed-product boundary
Long fibres can bridge contact areas and remain around screens or press discharge. Provide access for inspection and separate the dirty washing zone from the juice circuit.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the pressed stalk juice is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Compare the declared stalk/leaf composition and controlled cut condition, checking the juice and fibrous rejects together.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Celery processing questions
Why record chopping before a celery press trial?
The press receives the prepared material, not the original stalk description. A documented cut condition allows a separation result to be compared with normal production and later trials.
Can celery and spinach results be treated as identical?
No. Both can be investigated as vegetable feeds, but their structure and selected edible fraction differ. Each actual material and product target needs its own demonstration.
What should a useful celery trial establish?
Compare the declared stalk/leaf composition and controlled cut condition, checking the juice and fibrous rejects together. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
