From ingredient to a defined product
A cantaloupe line should separate external rind handling from clean flesh preparation. Maturity and aroma are product-development inputs, while the actual preservation and distribution system must be assessed for the resulting melon product. Clean the outer surface before cutting, remove rind and the central seed cavity, and pulp the edible orange flesh. A purée or formulated nectar requires a specified body and flavour target. Treat research preservation examples as development evidence; the commercial product still needs its own validated processing and storage design.

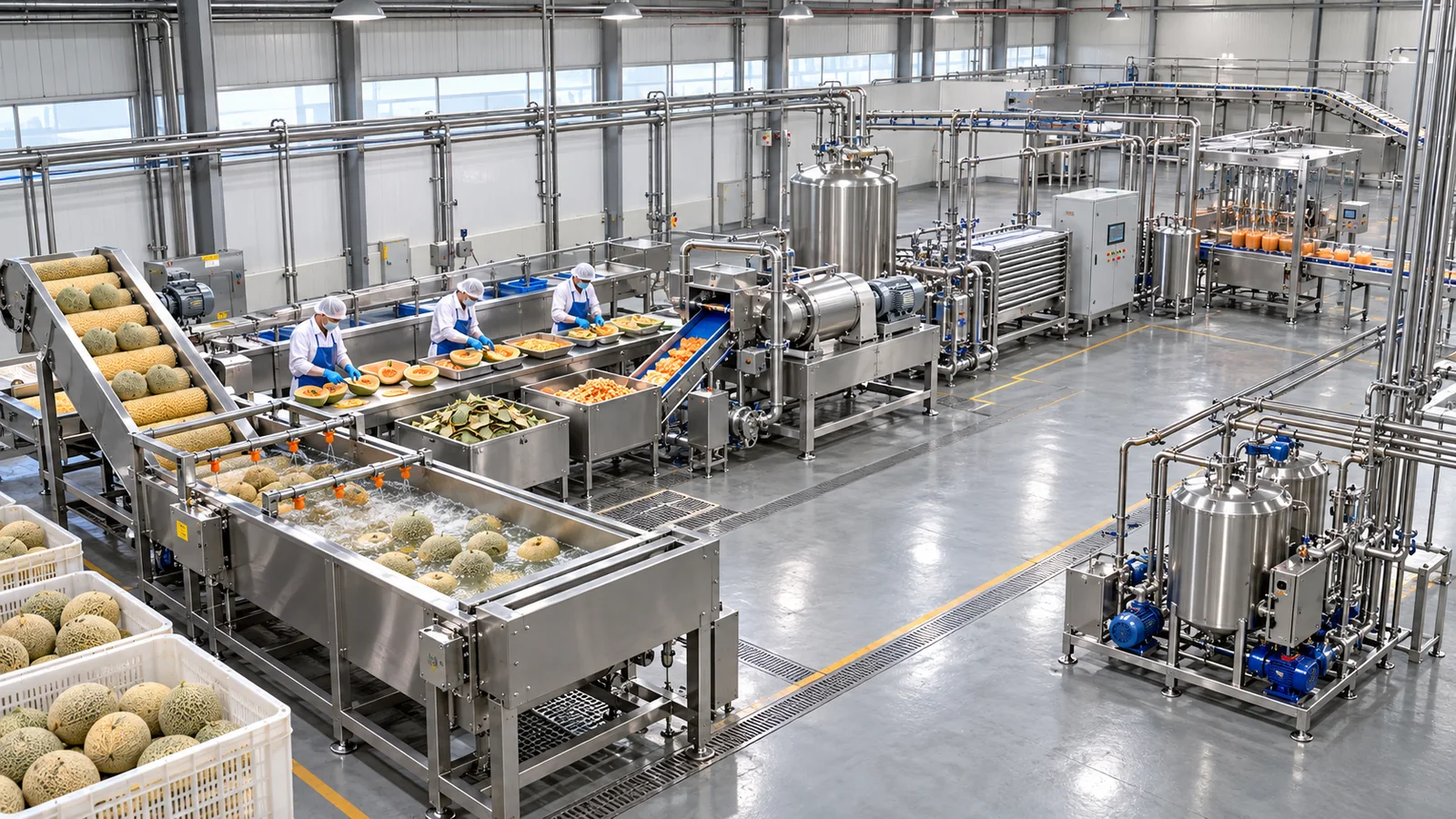

Illustrated product route: Cantaloupe puree base
Product directions to specify
- purée
- nectar base
- frozen fruit base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- How will the washing arrangement address the netted rind before the cutting step exposes the flesh?
- What maturity, orange colour and aroma are required, and should the finished base be smooth enough for a drink or retain more texture for a frozen dessert application?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Inspect incoming melons
Identify accepted fruit condition and remove unsuitable melons.
Record actual maturity and handling history instead of treating every delivered melon as a comparable purée feed.
Equipment duty: Receiving conveyor and maturity sampling station
- 02
Clean the exterior
Prepare the outside before any cutting exposes flesh.
The netted exterior requires its own cleaning assessment; washing alone is not a validated finished-product preservation process.
Equipment duty: Melon washer and controlled rinse
- 03
Remove rind and seed cavity
Separate edible flesh from the external rind and central seeds.
Keep cutters, exposed flesh and rejected rind within defined hygienic handling boundaries.
Equipment duty: Guarded cutting and flesh-preparation station
- 04
Reduce clean flesh
Create a controlled feed without reintroducing rind material.
Inspect prepared pieces before they become an opaque purée.
Equipment duty: Dicer or pulper feed unit
- 05
Develop the purée
Meet the desired flesh texture and coarse-particle specification.
Assess aroma and consistency with the actual mature-flesh supply.
Equipment duty: Melon pulper and selected finisher
- 06
Connect prompt product handling
Supply the defined preservation and packing route.
A chilled, frozen or otherwise treated product needs its own validated handling chain; an ordinary fruit-juice assumption is insufficient.
Equipment duty: Covered collection and suitable transfer
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The rind-separated melon purée route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Receiving conveyor and maturity sampling station
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Guarded cutting and flesh-preparation station
Rind separation and clean-flesh handling.
The arrangement should separate external rind handling from exposed flesh and juice. Incoming maturity and the intended preservation system need specific evaluation; fruit name is not a safety classification.
Dicer or pulper feed unit
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Assess maturity, rind fragments, seed fragments, aroma and consistency. Record sample handling so product quality is not compared across uncontrolled delays.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Collect rind and seed-cavity material outside the clean flesh flow. Describe the actual edible-flesh recovery separately from whole-melon weight.
Cleaning and the packed-product boundary
Cutters and rind-handling surfaces require a cleaning boundary from clean flesh and product-contact equipment. Include access to pulper and screen residues.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the rind-separated melon purée is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Demonstrate rind-to-flesh segregation and the real interruption pattern before evaluating the final purée and its preservation route.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Cantaloupe / Muskmelon processing questions
Does exterior washing make melon juice shelf-stable?
No. Cleaning the rind is one preparation control. The actual exposed-flesh process, preservation, filling and storage system must be evaluated and validated for the finished product.
Why specify maturity rather than only fruit weight?
The accepted flesh and sensory character depend on the supplied fruit condition. A documented maturity range makes preparation and product-quality comparisons more meaningful than a weight-only demonstration.
What should a useful cantaloupe / muskmelon trial establish?
Demonstrate rind-to-flesh segregation and the real interruption pattern before evaluating the final purée and its preservation route. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
