From ingredient to a defined product
Blackcurrant juice projects should keep berry preparation, pressing and later clarity decisions separate. The desired colour and flavour, raw supply state and proposed concentrate use guide the extraction trial. Clean currants and remove unwanted stalks or field material before crushing and extracting. A juice product requires a decision on pulp separation and clarification, while a jam base preserves more fruit solids. Processing trials should connect the berry preparation step to the desired colour and extraction result.

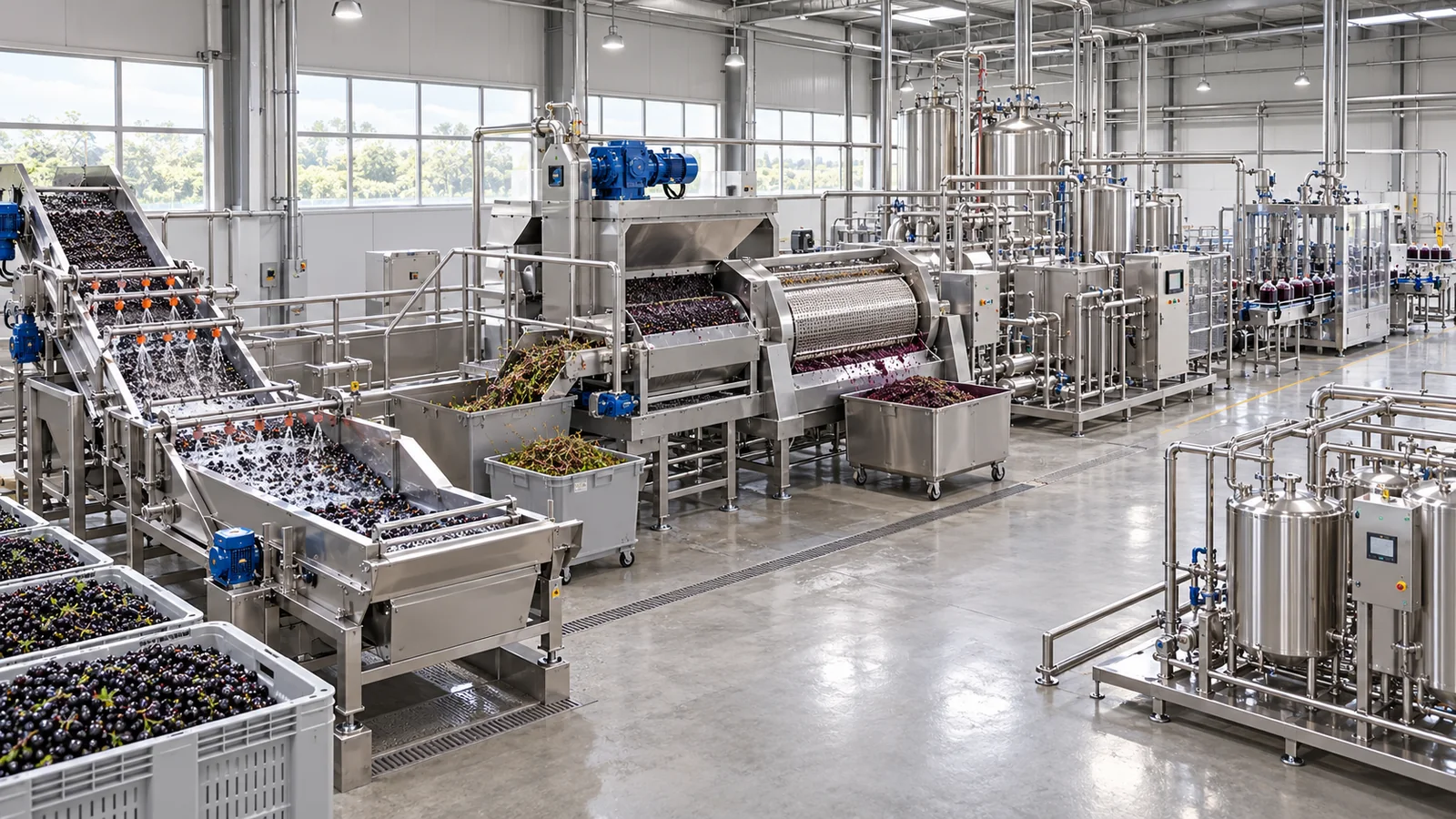

Illustrated product route: Blackcurrant juice base
Product directions to specify
- juice
- juice concentrate
- jam base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- What stalk and leaf load will arrive with the blackcurrants, and which receiving or cleaning step must remove it?
- Is the buyer seeking a clear concentrate, a cloudy juice ingredient or a textured base, and how will colour, sediment and flavour be evaluated for that endpoint?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive declared berry lots
Record fresh or otherwise specified feed condition and remove unsuitable berries.
A prepared or frozen feed should have a defined inlet condition rather than inheriting the assumptions for freshly harvested fruit.
Equipment duty: Inspection conveyor and receiving vessel
- 02
Remove stems and debris
Prepare a clean edible feed.
Check small stem pieces and foreign matter before the berries become an opaque mash.
Equipment duty: Berry cleaning and stem-removal arrangement
- 03
Prepare controlled mash
Develop a repeatable feed for juice separation.
Any conditioning or enzyme use needs an explicit product-development brief and must remain traceable in the trial record.
Equipment duty: Crusher and covered feed vessel
- 04
Separate juice
Recover liquid while segregating the pomace.
Compare the desired juice character with recovery; a maximum gross extraction figure is not the sole acceptance criterion.
Equipment duty: Product-compatible press and coarse screen
- 05
Set clarity and sediment requirements
Develop the specified juice appearance.
A concentrate ingredient and a visibly cloudy single-strength juice may require different separation outcomes.
Equipment duty: Finishing or selected clarification equipment
- 06
Transfer to the chosen route
Supply a declared product condition downstream.
Keep evaporation and aroma-related requirements distinct from the basic berry pressing section.
Equipment duty: Covered juice buffer and optional concentration interface
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The pressed juice or concentrate base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Inspection conveyor and receiving vessel
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Crusher and covered feed vessel
Gentle handling and seed management.
Inspection, handling damage and separation of small seeds deserve separate acceptance criteria. Juice, seed-containing fruit bases and smooth purées should not be judged against the same texture target.
Product-compatible press and coarse screen
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Compare colour, flavour, suspended material and settling with recorded raw feed and any conditioning. Evaluate the product in its intended blend or reconstituted form where relevant.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Collect stems and press cake separately from usable juice. Secondary extracts or colour ingredients are separate product scopes, not automatic outputs.
Cleaning and the packed-product boundary
Pigmented skins and fine solids require inspection of presses, screen joints and tank contact areas. Specify the acceptable changeover result for a lighter subsequent product.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the pressed juice or concentrate base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Use a documented supply state and evaluate press recovery together with colour, flavour and settled-product samples.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Blackcurrant processing questions
Is clarification automatically included?
No. Define the required cloud or clarity and the intended concentrate or single-strength use first. Clarification equipment should follow that target and suitable trials.
Can a vendor’s blackcurrant trial establish a guaranteed output?
A published application confirms a processing possibility, not performance on another supply. The actual fruit and quality specification need their own recorded demonstration.
What should a useful blackcurrant trial establish?
Use a documented supply state and evaluate press recovery together with colour, flavour and settled-product samples. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
