From ingredient to a defined product
Blackberry preparation must protect delicate fruit while making an explicit decision about seeds. A seeded fruit base, smooth purée and separated juice are distinct product targets, not successive grades of the same specification. Sort and clean blackberries, then pulp or press according to the chosen product. Screening determines the amount of hard seed material retained in the flesh. A juice route adds separation of suspended solids, while a jam route may deliberately keep a coarser fruit structure.

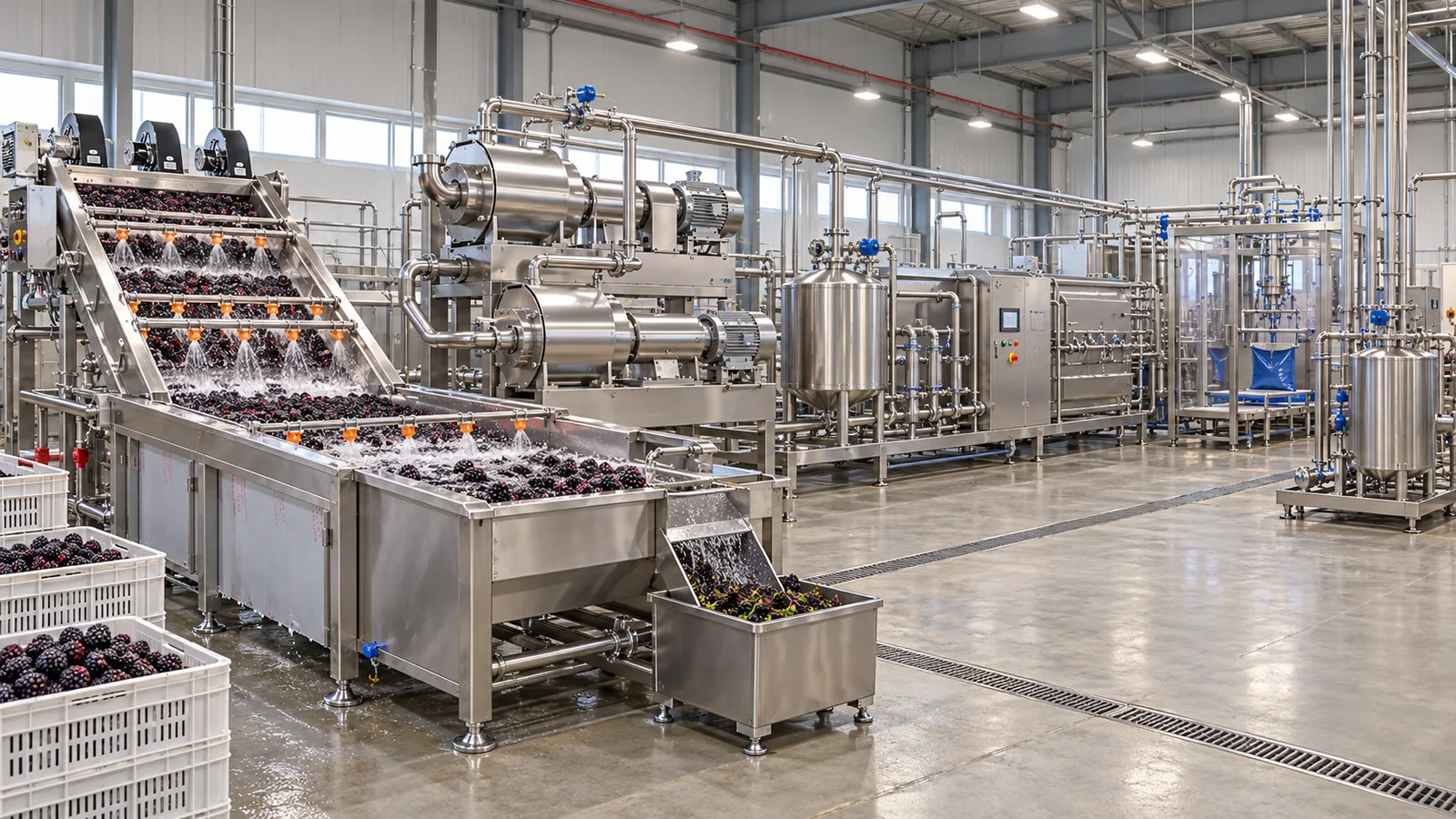

Illustrated product route: Blackberry puree
Product directions to specify
- purée
- juice concentrate
- jam
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- What seediness will the intended consumer accept, and should the finisher remove seeds fully or preserve part of the berry texture?
- Which ripeness grades and varieties supply the plant, and how should trials balance colour extraction, coarse residue and saleable pulp recovery?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Inspect delicate lots
Remove unsuitable berries before they are combined.
Check handling damage and the condition of leaking fruit rather than treating all liquid in the receiving bin as usable juice.
Equipment duty: Shallow receiving and inspection conveyor
- 02
Clean gently
Remove debris without unnecessary fruit breakup.
Demonstrate drainage and fruit retention using the softest accepted berries.
Equipment duty: Gentle berry washer and drain screen
- 03
Prepare the edible feed
Open the fruit for the chosen purée or juice route.
A controlled feed helps distinguish intentional pulping from uncontrolled damage during transfer.
Equipment duty: Gentle crusher or pulper
- 04
Set the seed objective
Recover the desired edible fraction while managing seeds.
Compare a seeded base and a smoother ingredient against different acceptance samples.
Equipment duty: Seed-separating finisher or product-specific press
- 05
Review coarse particles
Remove unwanted coarse material from the selected stream.
Do not assume the smallest screen gives the best colour, mouthfeel or usable recovery.
Equipment duty: Secondary finishing screen where justified
- 06
Buffer the accepted ingredient
Supply a defined texture and consistency to the downstream section.
A juice-concentration project should be specified separately from a thick fruit preparation.
Equipment duty: Covered product vessel and suitable pump
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The seed-controlled purée or juice route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Shallow receiving and inspection conveyor
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Gentle crusher or pulper
Gentle handling and seed management.
Inspection, handling damage and separation of small seeds deserve separate acceptance criteria. Juice, seed-containing fruit bases and smooth purées should not be judged against the same texture target.
Seed-separating finisher or product-specific press
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Check seed fragments, mouthfeel, colour and consistency after the intended downstream handling. Keep the accepted incoming softness with the trial record.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Separate seed-rich and skin-rich rejects from the product. Any secondary recovery must be labelled and evaluated before it is combined with the main ingredient.
Cleaning and the packed-product boundary
Berry seeds and pigmented pulp need accessible screens and seals. Cleaning verification should consider both retained solids and visible colour carryover.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the seed-controlled purée or juice is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Compare seeded and smoother product options using representative berry condition and the customer’s actual final application.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Blackberry processing questions
Must blackberry seeds be completely removed?
Only if that is the specified product. Some fruit bases deliberately retain seed character; a smooth ingredient requires a different separation objective and an acceptance sample.
Can a high-colour sample prove the process is finished?
No. Colour is one quality attribute. Seed fragments, particle character, flavour and the required preservation and packaging route still need evaluation.
What should a useful blackberry trial establish?
Compare seeded and smoother product options using representative berry condition and the customer’s actual final application. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
