From ingredient to a defined product
Beetroot juice preparation should start with table-beet supply, soil removal and an explicit peeling or trimming decision. Juice extraction and a flesh-containing purée retain different fractions and should not share an undefined product target. Receive table beetroot to a defined size and condition specification, remove soil and unwanted tops, then wash and prepare the roots. Cut before pressing for juice or softening and refining for purée. Evaluate the target colour and flavour using the selected route; raw beet varieties are not automatically interchangeable.

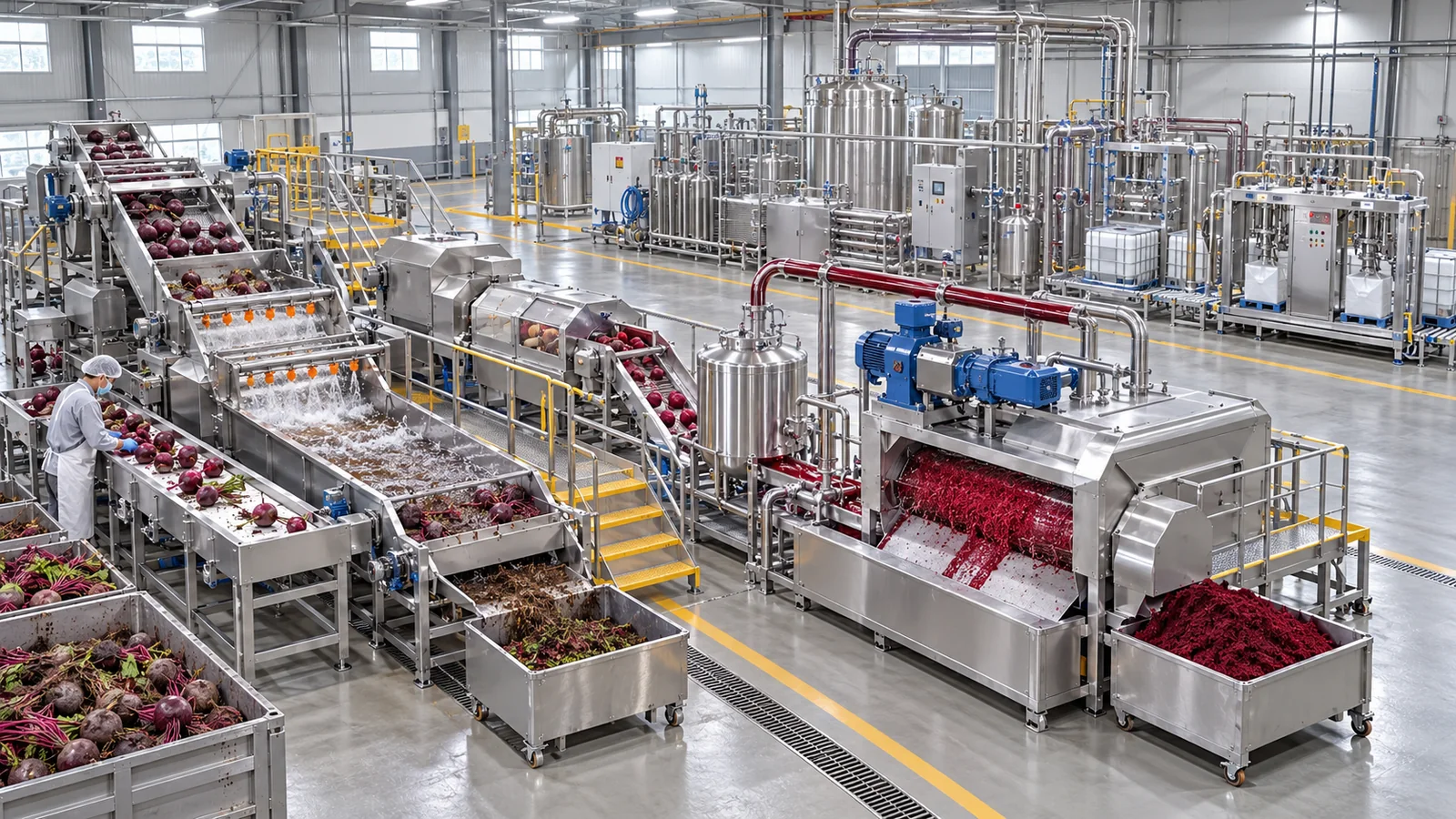

Illustrated product route: Beetroot juice base
Product directions to specify
- juice
- purée
- vegetable blend base
These are alternative product briefs. The illustration represents its declared route, rather than every optional operation at once.
Fruit or prepared-feed boundary
- Will the buyer supply red table beetroot rather than sugar beet, and what root diameter and soil contamination range must preparation handle?
- How much earthy flavour and pulp should remain, and what colour retention, coarse fibre and sediment limits will be used to approve the finished beetroot ingredient?
- Define incoming state, variety, maturity, accepted defects and supply interruptions in the purchasing brief. A proposed line should be demonstrated with representative commercial lots rather than a single ideal sample.
Follow the selected material route
- 01
Receive accepted roots
Identify variety, root dimensions and defects.
Table beet and another beet-derived industrial feed should not be treated as interchangeable raw materials.
Equipment duty: Root inspection conveyor and receiving hopper
- 02
Remove soil
Remove adhering soil before edible preparation.
Separate dirty root-washing water from the clean preparation and juice-contact areas.
Equipment duty: Root washer and controlled rinse
- 03
Trim and define peel inclusion
Prepare the accepted edible root fraction.
Agree how skin and damaged portions are handled before comparing recovery.
Equipment duty: Trimming and selected peeling arrangement
- 04
Reduce root size
Develop a feed suited to the selected press.
The actual particle character should be recorded, not described only by the motor size or cutter name.
Equipment duty: Root shredder or cutter
- 05
Press the juice
Separate liquid from fibrous root solids.
Assess suspended solids and press cake with the desired flavour and product colour, not gross output alone.
Equipment duty: Product-compatible juice press
- 06
Finish and route
Set coarse-particle and pulp requirements.
A clarified ingredient or concentrated base adds distinct separation and downstream duties.
Equipment duty: Screening stage and covered juice buffer
- 07
Specify preservation around the actual product
Confirm the measured product composition, particulate load and intended storage chain before the treatment and filling arrangement is selected.
The pressed root-juice base route needs its own validated process. A drawing, a heat-exchanger name or a successful extraction trial does not establish a safe treatment schedule or a finished shelf-life claim.
Equipment duty: Selected treatment unit, controlled transfer and process instruments
- 08
Fill, identify and verify the packed ingredient
Match the approved ingredient to the selected package and handling conditions. Record the production lot and the conditions required by its defined distribution route.
The filling boundary belongs in the project specification: container format, product-contact interface, filling hygiene, storage and the downstream user’s receiving requirements must agree before commercial acceptance.
Equipment duty: Compatible filler, packaging interface and lot-identification station
Equipment duties around the ingredient
Root inspection conveyor and receiving hopper
Control the incoming-material presentation before preparation.
Check actual lot condition, peak arrivals and the accepted size range. Provide a sample/reject point that can be operated without obstructing feed to the next machine.
Trimming and selected peeling arrangement
Soil removal and texture development.
Preparation, particle size and any conditioning step should be evaluated for the actual vegetable and product. Do not borrow a fruit-juice preservation schedule for a vegetable formulation.
Root shredder or cutter
Create the agreed intermediate condition for downstream equipment.
Agree an acceptance sample, a measurable particle or separation target and a reject-handling method. Select contact parts and access arrangements after trials with representative material.
Product buffer and transfer system
Connect preparation, treatment and filling without assuming all sections run at the same rate.
Record viscosity, particle character, temperature envelope and expected stoppages. Confirm drainability, sampling points and how unaccepted or interrupted product is identified and handled.
Preservation, packaging and cleaning interfaces
Complete the declared process boundary.
The quoted scope should identify included instruments, services, containers, hygienic connections and validation responsibilities. An item list without these interfaces is not a complete line specification.
Quality, rejects and the actual product
Review soil or grit, coarse particles, colour, flavour and sediment. Keep raw variety and preparation condition with retained samples.
Define the sampling location, sample preparation, measurement method and acceptable variation. Retain traceable comparisons through the intended downstream route; a favourable immediate sample is not proof of storage stability.
Separated material streams
Collect soil-bearing rejects, trim and fibrous press cake separately. Co-product use needs its own quality and handling specification.
Cleaning and the packed-product boundary
Root soil, coloured residues and fibres require different removal and inspection steps. Separate open dirty-root cleaning from the closed juice circuit.
Assign cleaning responsibilities to the open preparation zone and the closed product circuit separately. Confirm which parts require removal or inspection and how cleaning effectiveness will be demonstrated with the actual product soil.
Packaging and storage
Specify whether the pressed root-juice base is supplied as a chilled, frozen, otherwise treated or aseptically handled ingredient, as applicable to the developed product. Package material, closure, fill conditions and distribution are a connected system. Any claimed ambient stability or shelf life requires product- and package-specific validation; the process introduction does not set treatment temperatures or holding times.
Prepare the product and batch brief
- Trial the accepted root-size and soil-load range, recording the chosen peel/trim objective and press feed condition.
- Provide the intended finished-product specification, representative raw-material samples, daily operating pattern and seasonal peak load.
- Identify available utilities, factory layout, drainage, reject collection and the exact inlet/outlet conditions of equipment supplied by others.
- Agree trial acceptance criteria and define the preservation, filling, cleaning and commissioning responsibilities before finalising the equipment scope.
Beetroot processing questions
Can sugar-beet feed represent table-beet juice trials?
No. The raw-material identity and product should be declared. A reference from another beet-processing application does not establish performance on the table-beet ingredient required here.
Does deep colour prove a suitable juice?
No. Coarse particles, grit, flavour, sediment and the selected preservation and packaging route also need evaluation on the actual product.
What should a useful beetroot trial establish?
Trial the accepted root-size and soil-load range, recording the chosen peel/trim objective and press feed condition. Record incoming material, accepted feed, finished ingredient and each reject stream separately. Keep settings, samples and analytical methods with the trial record so the result can be compared with subsequent seasonal lots.
Technical references
References establish raw-material and process context. Equipment selection and final product validation remain specific to the project.
